Home
>>
BMW
>>
1988
>>
535i (E28) L6-3430cc 3.4L SOHC (M30)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Automatic Trans.
>>
Sensor Input & Outputs
Sensor Input & Outputs

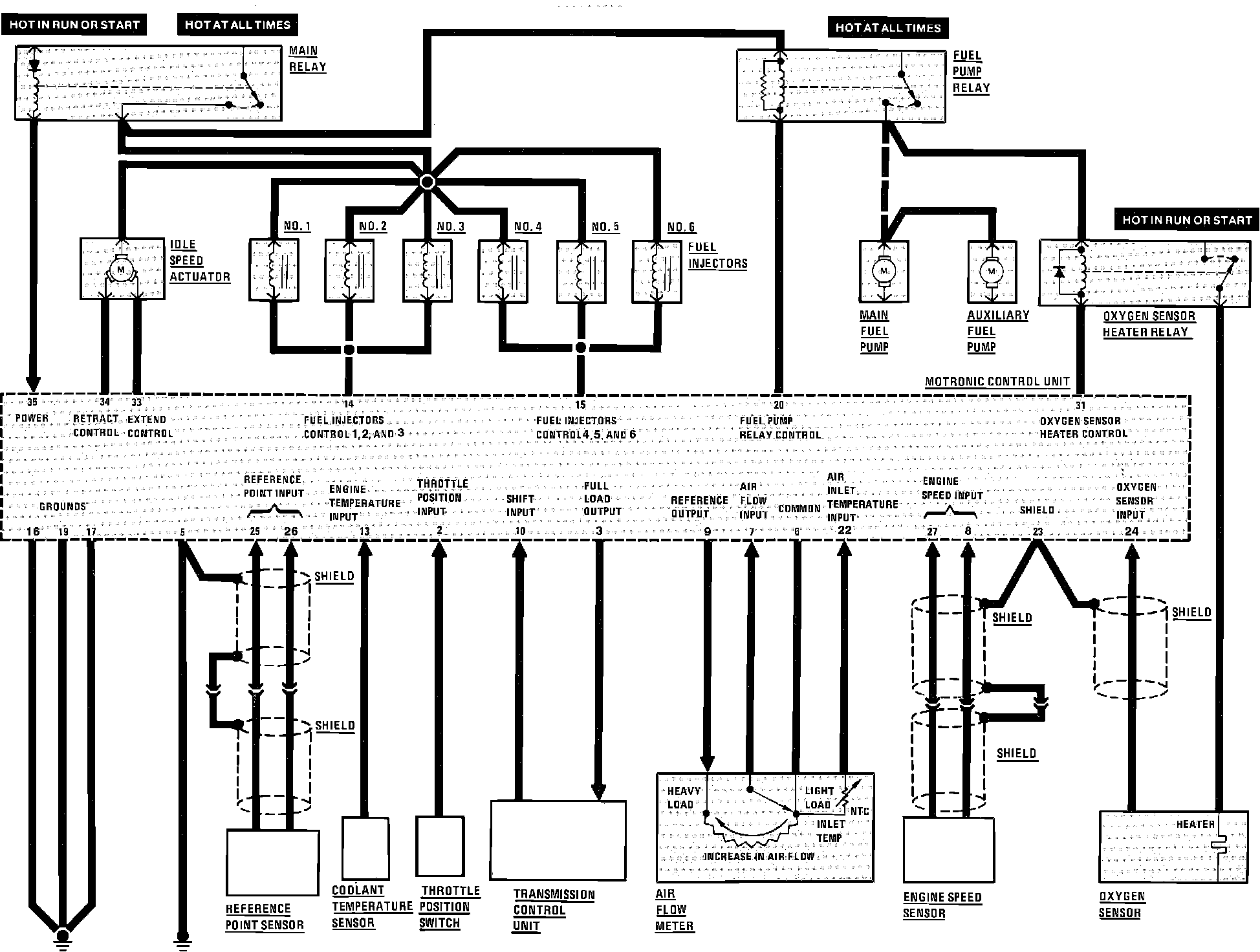

Fig. 168 Fuel Injection Wiring Circuit Automatic Trans.:
