Electrical Diagrams

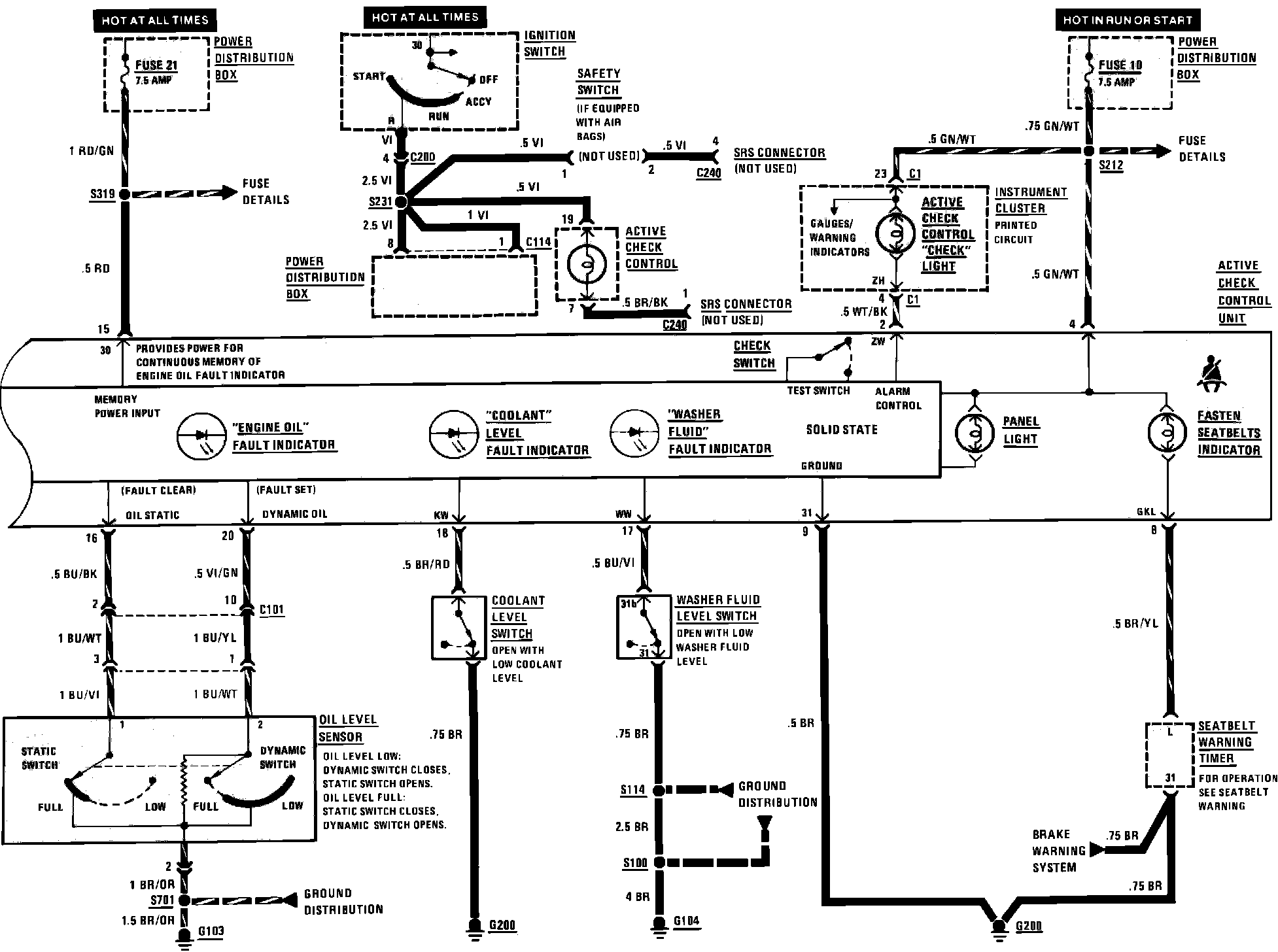

Fig. 35a Active Check Control:

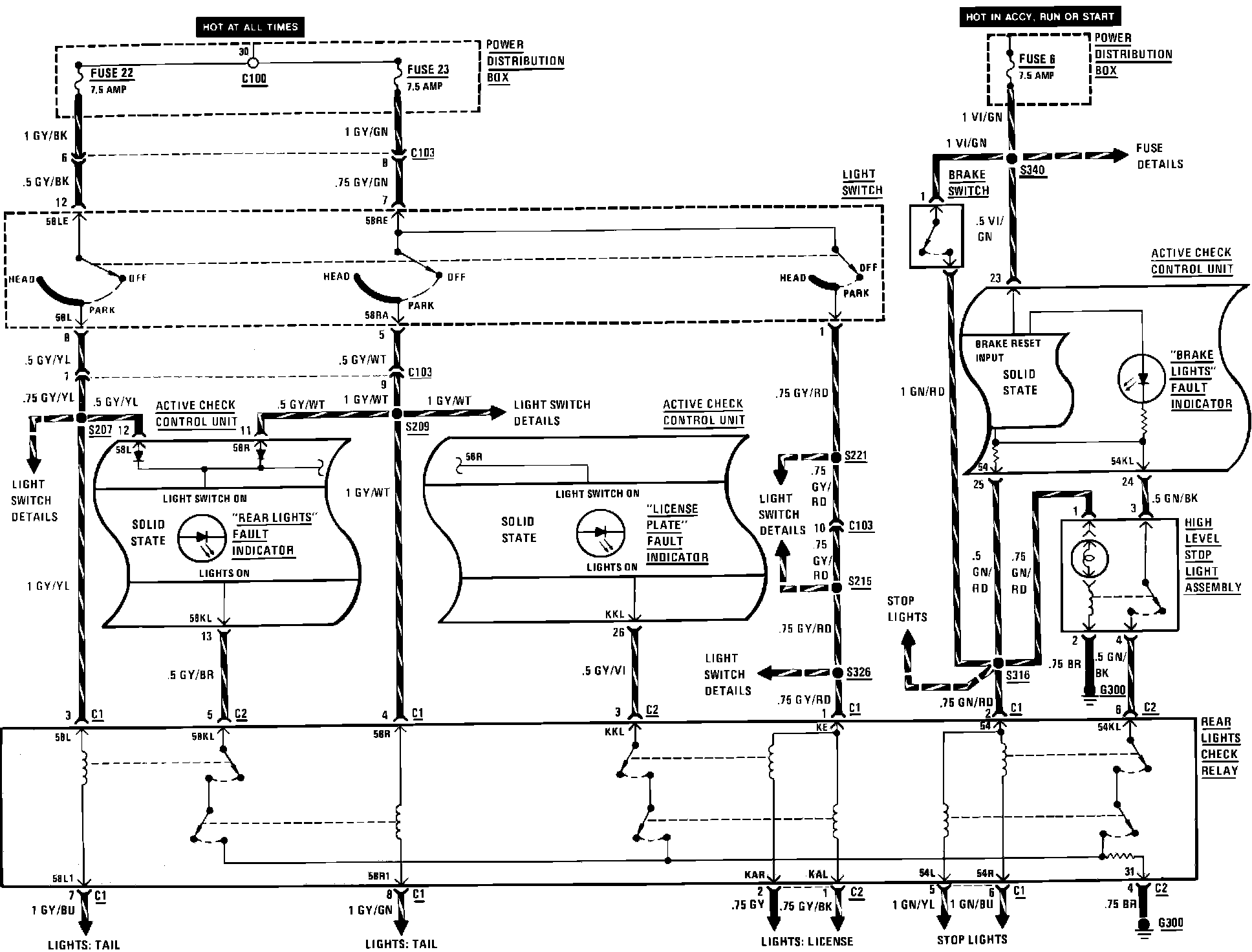

Fig. 35b Active Check Control:

Fig. 35c Active Check Control:
