Compressor Control
>>
Early Production
Early Production

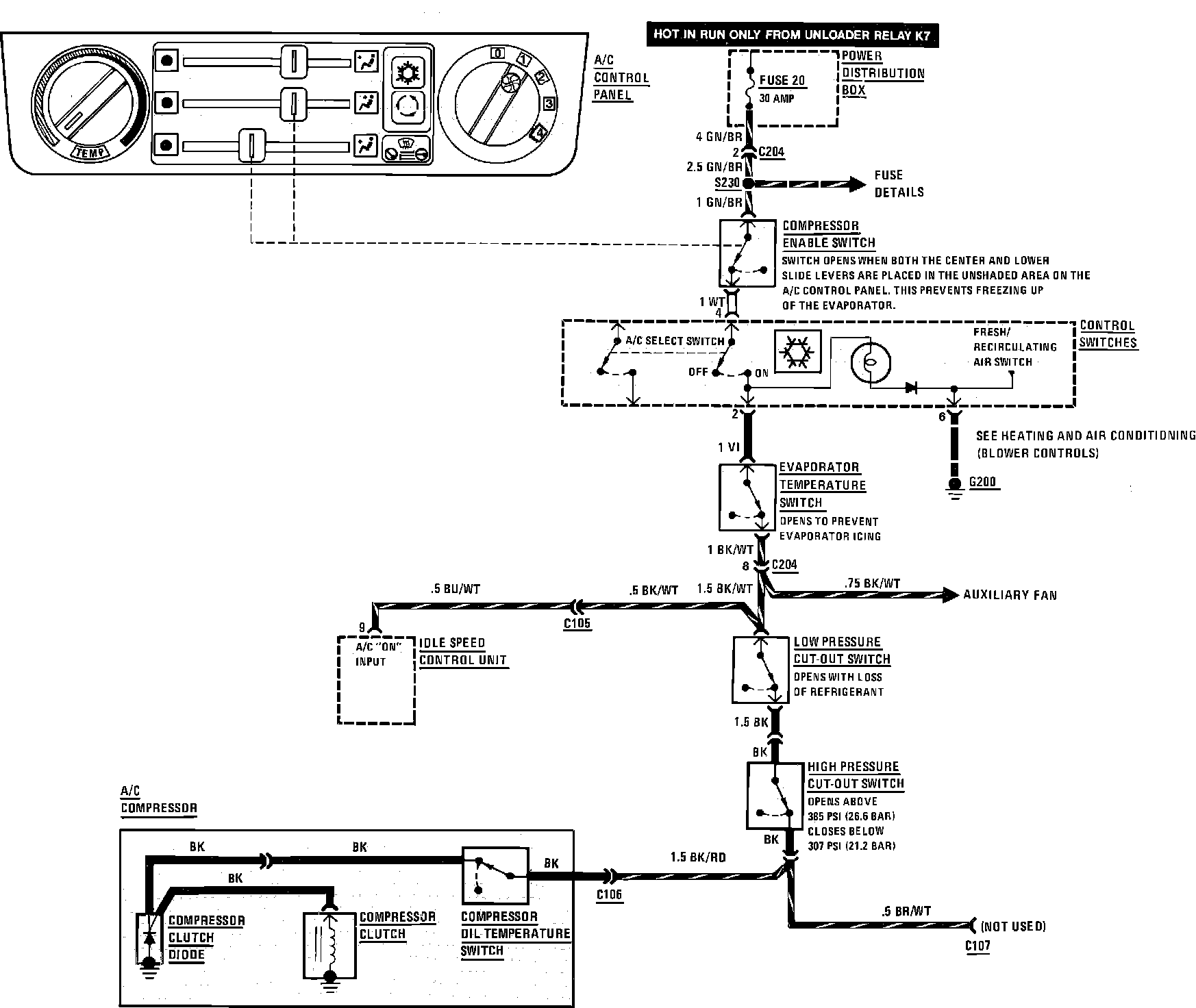

Fig. 17 A/C compressor controls wiring circuit:
