Wiper Switch: Service and Repair

Removal and Installation

1. Disconnect battery ground wire.

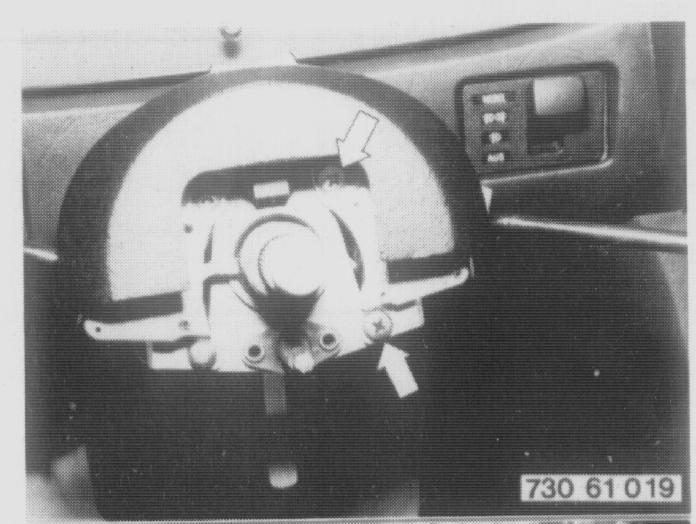

2. Remove and install casing lower section.
3. Detach switch on switch plate.










4. Loosen wire straps.

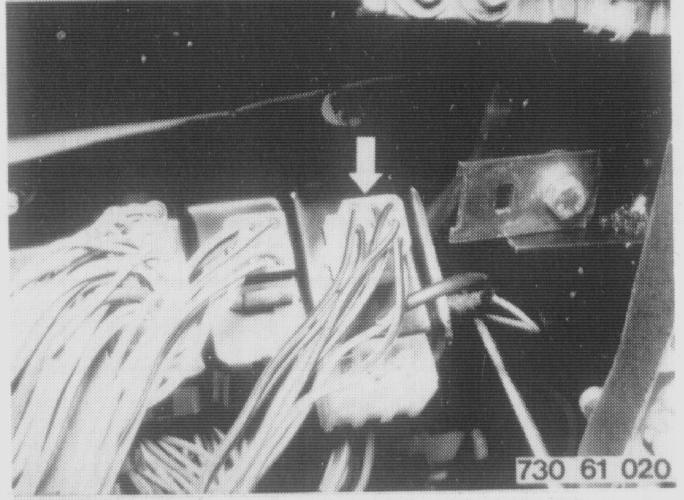

5. Disconnect central electric plug and remove switch.

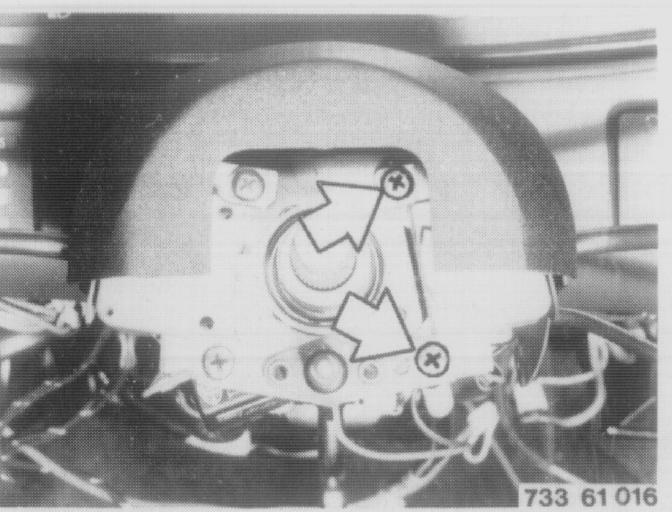

6. Unscrew bolts.

Installation
