Starter Solenoid: Service and Repair

REPLACING SOLENOID






Remove starter.

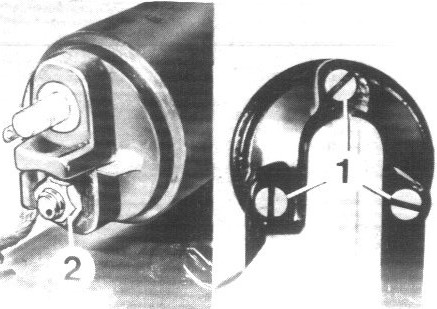

Unscrew nut (2) and bolts (1).







Remove solenoid.

Installation:

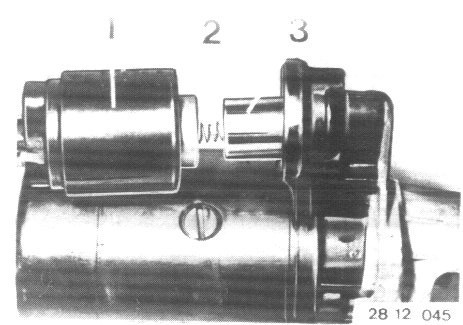

Check armature (3) for wear (scoring, deep spots), replacing if necessary. Lubricate with grease before installing.
