Component Tests and General Diagnostics

INSPECTING COMPONENTS OF STARTER

- Electric Test -

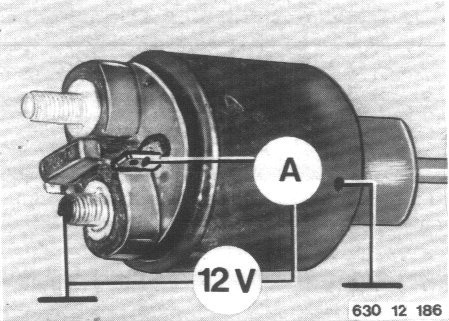

Check power input of engaging and holding coils in solenoid switch.

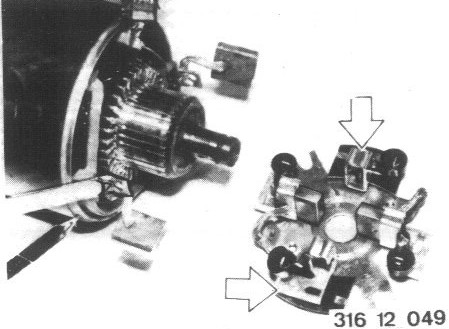

Check exciter coil, carbon brush holder and armature coil for ground contact.

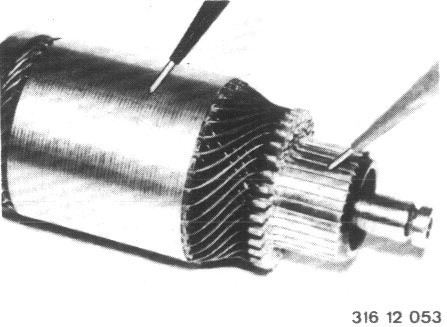

Check armature for shorted turns.
Use a standard tester.
