Fuse Block: Locations

The Power Distribution Box is located at the front of left front wheelwell.

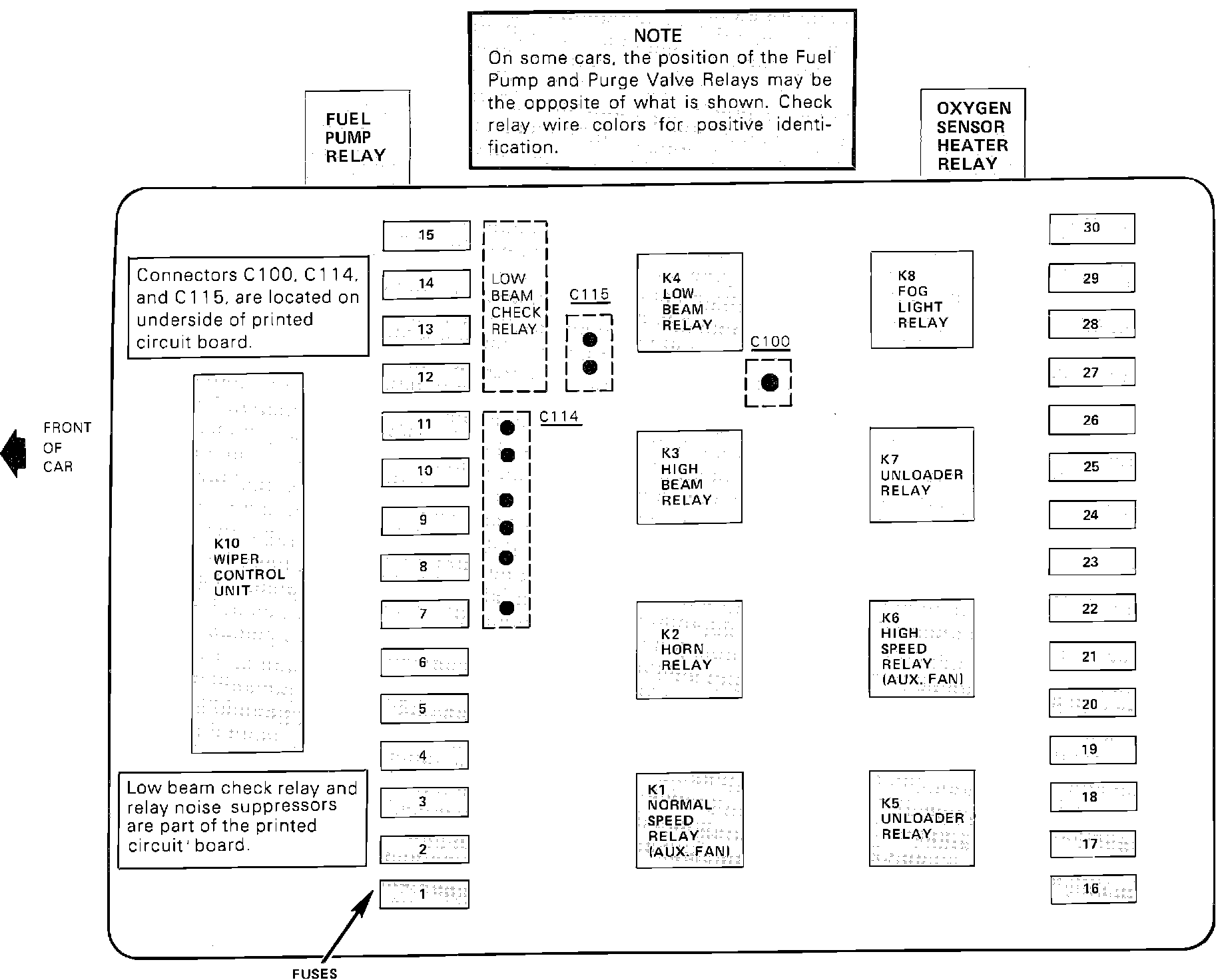

Fuse & Relay Positions In Distribution Box:

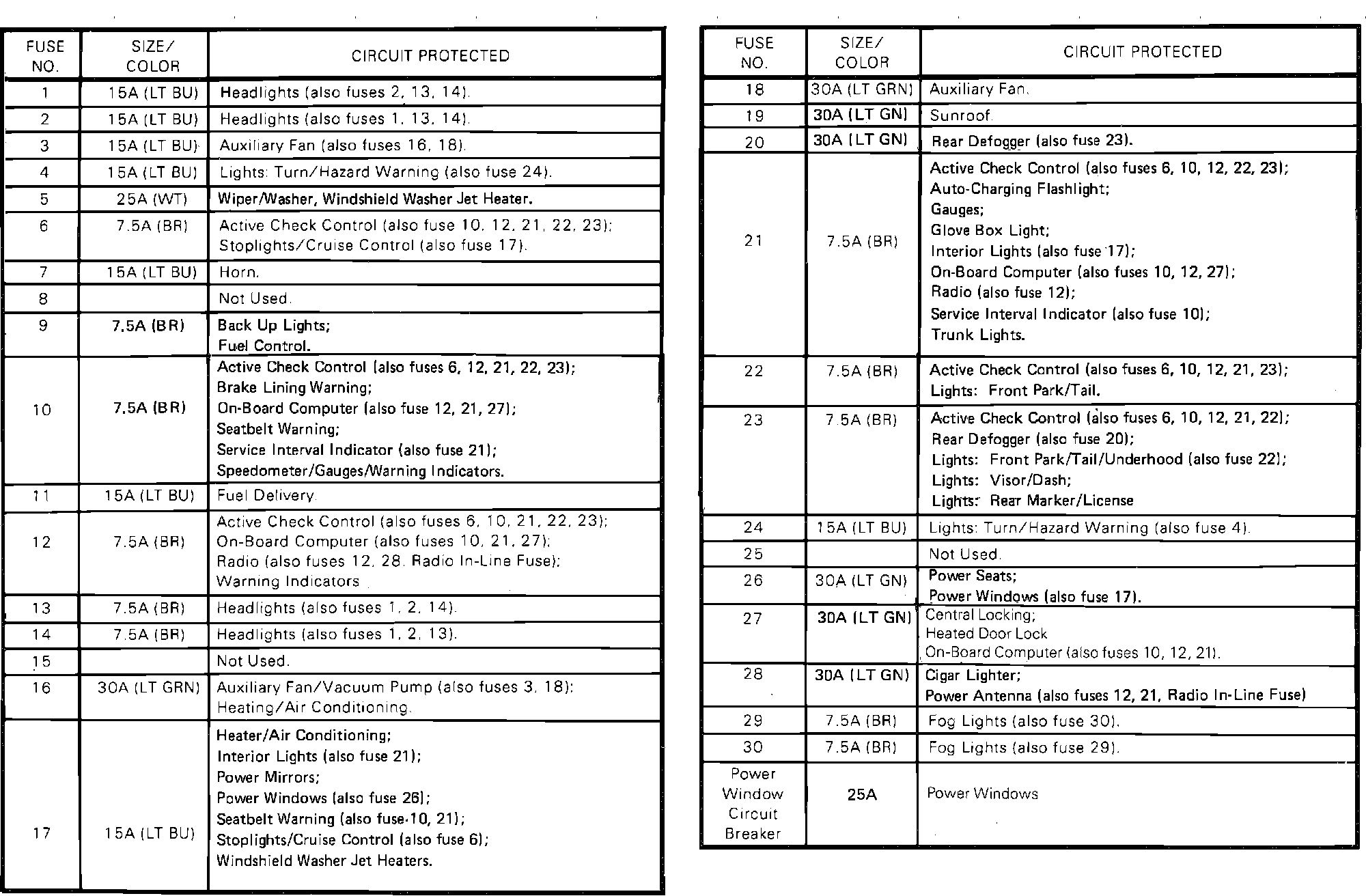

Fuse Assignments:
