Home
>>
BMW
>>
1985
>>
735i (E23) L6-3430cc 3.4L SOHC (M30)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

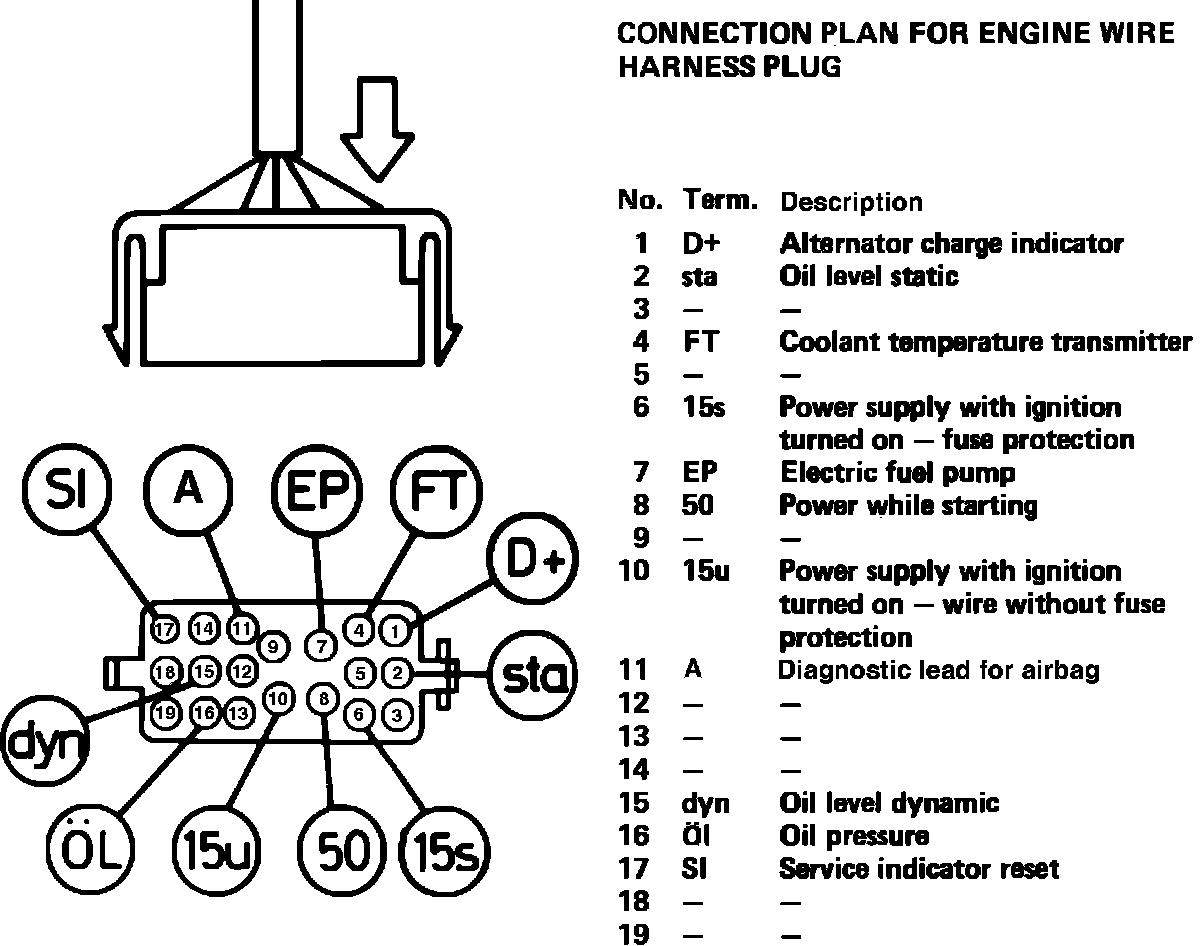

Fig. 79 Wiring harness plug:
