Temperature Selector Wheel

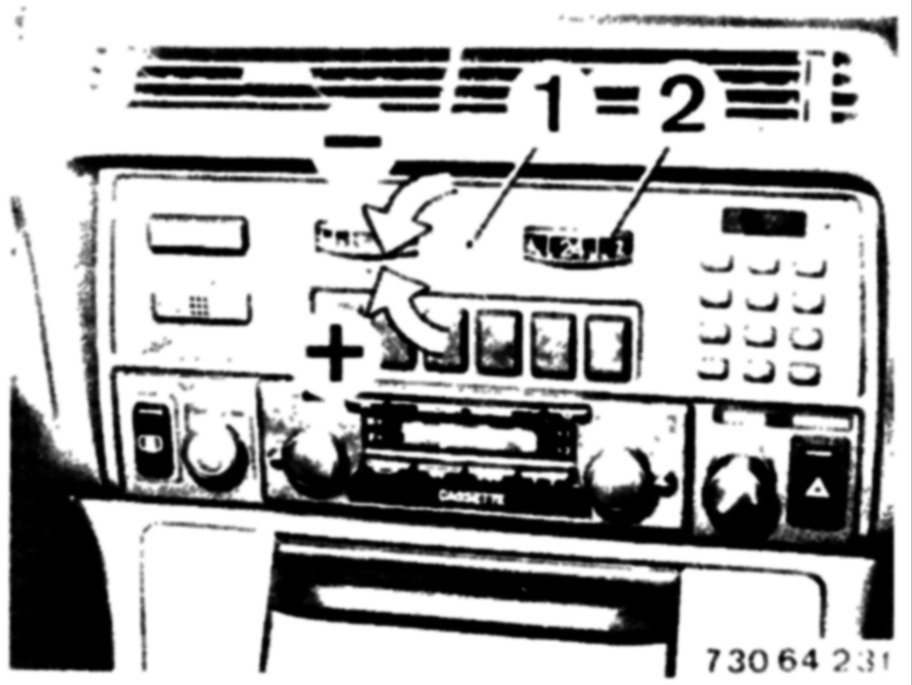

Temperature Selector Wheel Connector:

Checking the temperature selector wheel
- Disconnect plug (1) from the control panel (temperature selector wheel).
- Connect an ohmmeter between terminals 11 and 12 on the printed circuit board.

Correcting the ohmic value (temperature selector wheel)

Selector Wheel Adjustment:

- The value in Ohms can be corrected by turning the screw in hole (1).


NOTE: Move the temperature selector wheel to a central setting and adjust to the corresponding value in Ohms.

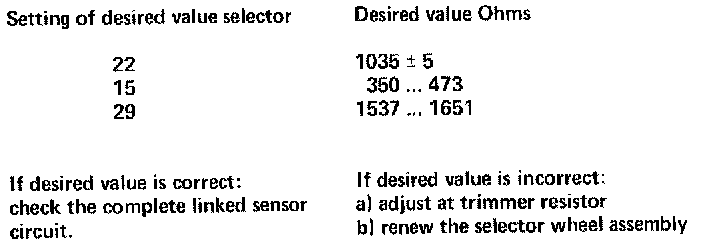

Ohms/Value Chart:

Ohms/Value Chart
