Air Distribution

Program Sequence:

Operation

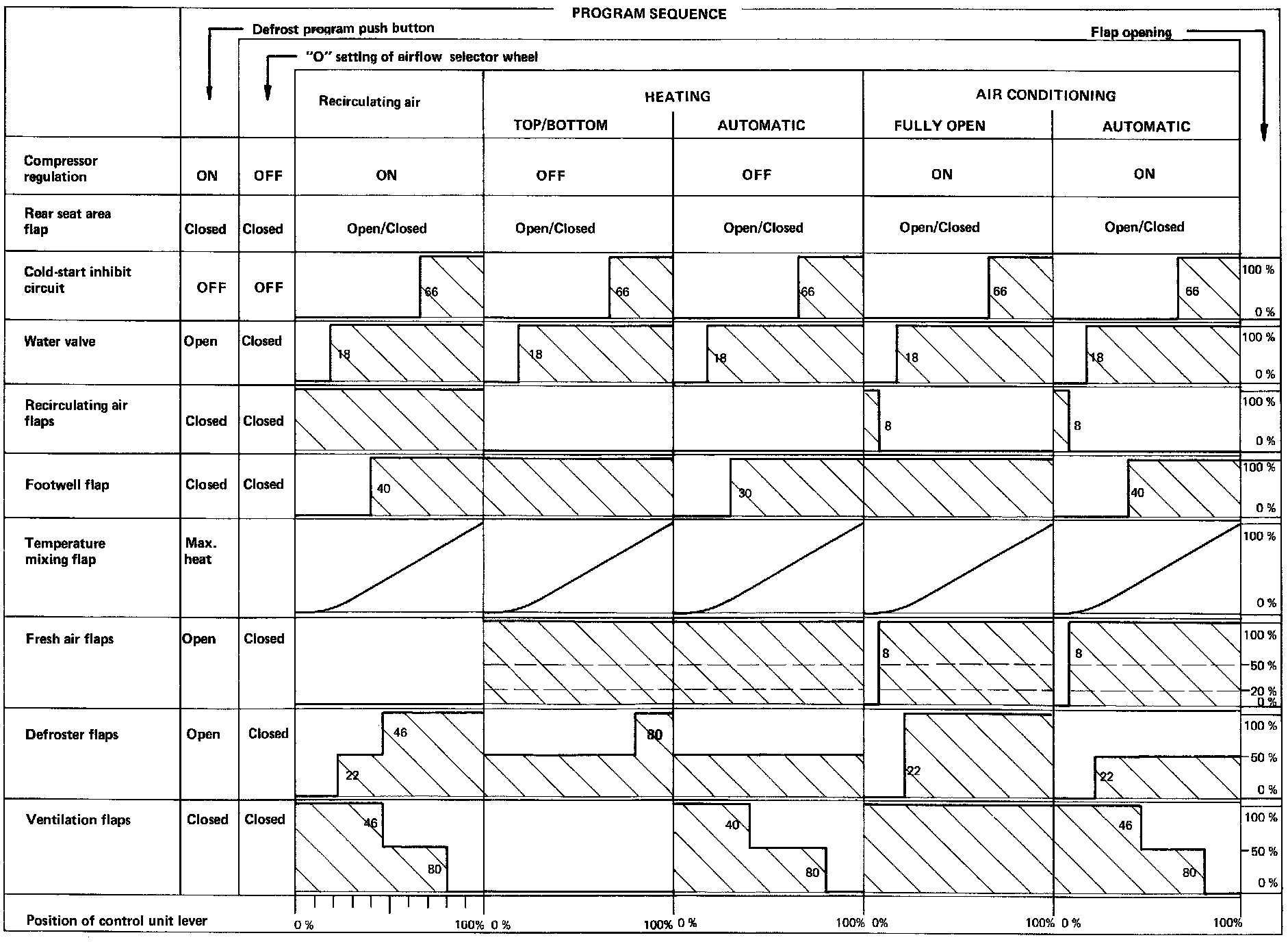

The program sequence graph shows air distribution according to program preselection (push button settings) and the position of the control unit lever.

The flaps are actuated by vacuum plungers. Distribution of the vacuum, that is to say selection of the necessary vacuum plungers, takes place with the aid of solenoid valves.
