External Sensor

Checking the external sensor:

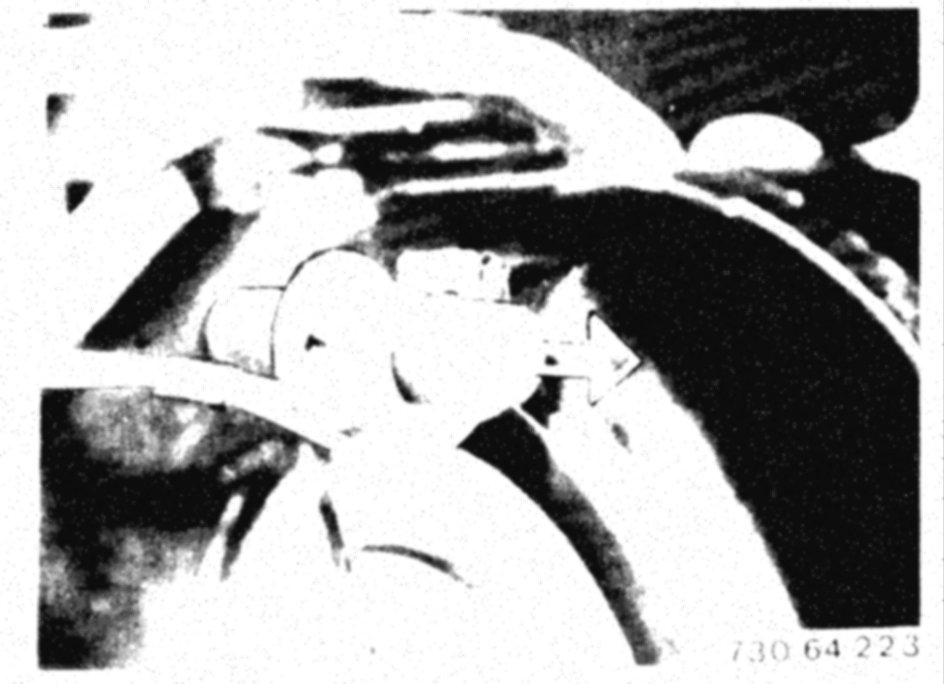

External Sensor Connector:

- Detach the plug from the external sensor.
- Connect an ohmmeter to the sensor between terminals 1 and 3.

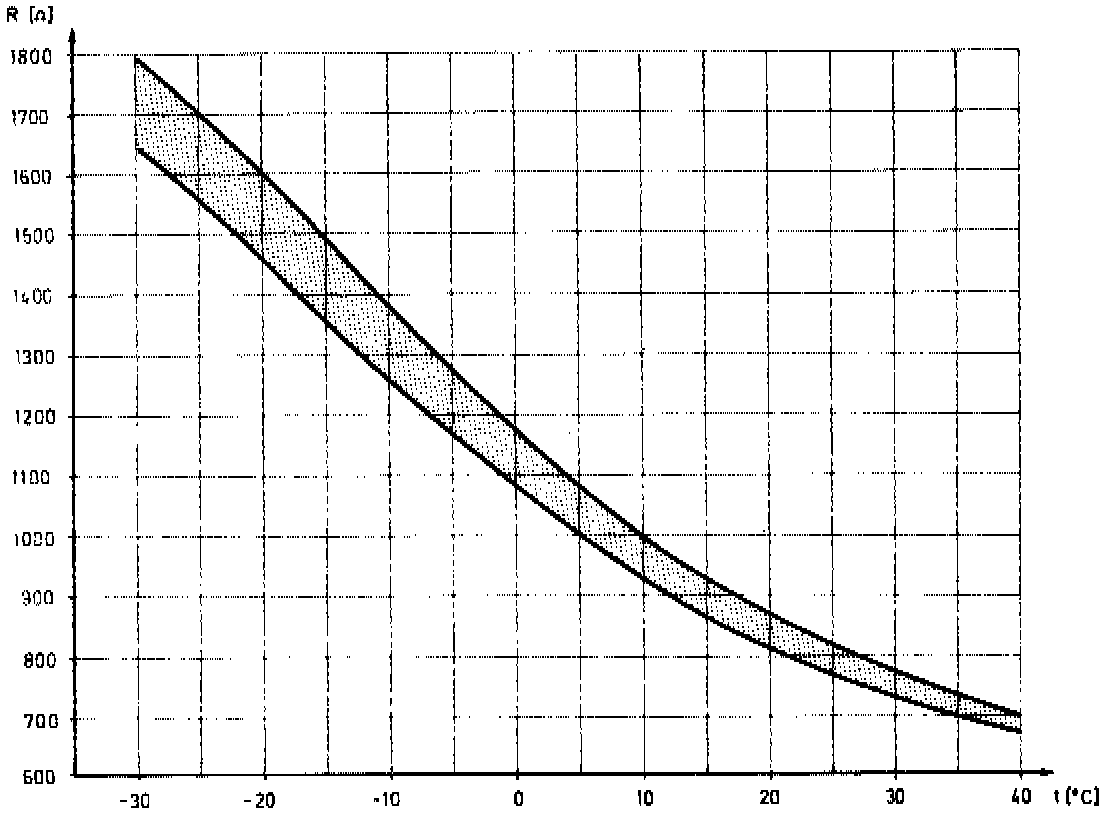

Temperature/Ohms Chart:

See chart for temperature-dependent readings.
