Control Panel, Removing/Installing

REMOVING AND INSTALLING CONTROL PANEL FOR ON-BOARD COMPUTER

Note: OBC I control panel shown. OBC II removal is the same.

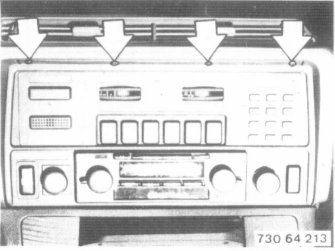

Unscrew bolts.




Remove radio or opening mask.

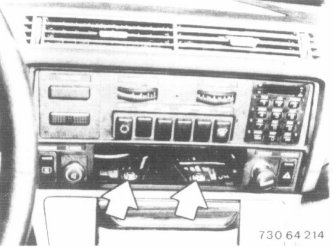

Unscrew both screws.




Pull control panel forward slightly.
Pull off wire plugs and light bulbs.
Remove control panel.

Installation:

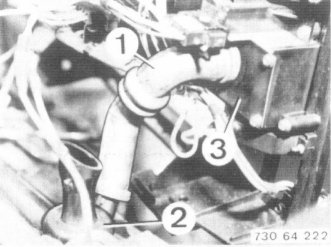

Make sure air line fits correctly between ejector and inside temperature sensor.
1 Air hose
2 Ejector
3 Inside sensor

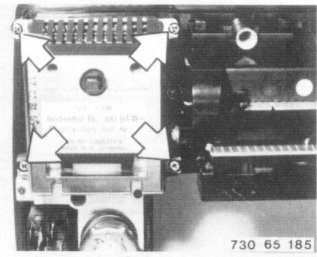

Unscrew bolts.
