Service Interval Indicator Board - Not Seated On Cluster

GROUP 62
Instruments



Bulletin Number
62 02 86 (1151)



Montvale, NJ
February 1986
Technical Dept.



SUBJECT:
Service Interval Indicator (S.I.I.) Printed Circuit Board

MODELS:
E30

Situation:
Replacement S.I.I. printed circuit board cannot be inserted fully into instrument cluster housing. There are two suppliers of instrument cluster components, VDO and MOTOMETER.


Parts from these two suppliers are interchangeable. However, if a printed circuit board from MOTOMETER is installed into an instrument cluster from VDO, a relay on the board may contact an assembly tab in the cluster.

Repair:

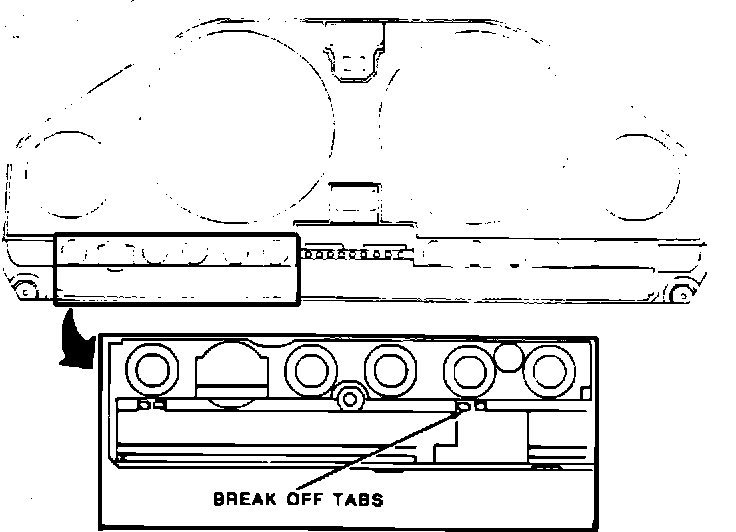

Break off tab(s) with a suitable tool before installing the S.I.I. printed circuit board. The board can now be inserted fully.
