Starter Solenoid: Service and Repair

- Remove starter.

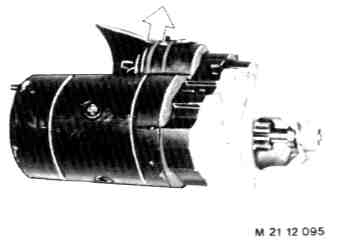

- Take off cover.

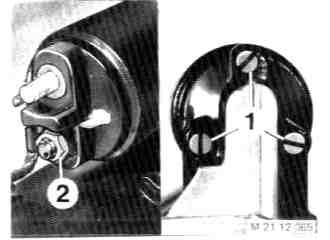

- Unscrew solenoid (1 and 2)

Installation Note:
- Don't turn wire connector while tightening danger of short circuit.

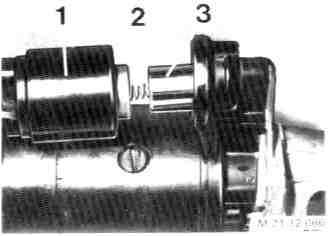

- Takeoff solenoid (1) and spring (2).
- Disconnect pin (3)

Installation Note:
Check pin (3) for wear and lubricate with grease.

CHECKING STARTER PARTS (Electric Test)

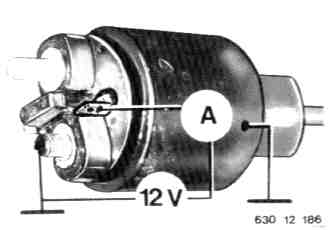

- Check power consumption of activating and holding coils in solenoid.

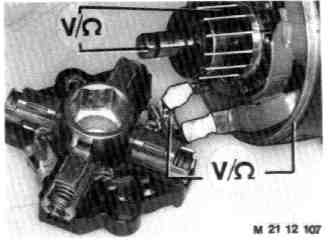

- Check exciter coil, carbon brush holder and armature coil for ground contact.

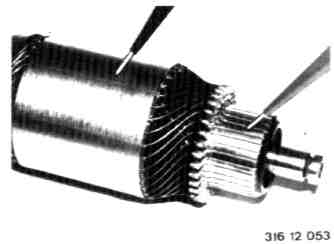

- Check armature for shorted turns with a standard tester.





- Checking exciter coil 15 not applicable to cars with permanent magnets (M 3).
