Field Coil: Testing and Inspection

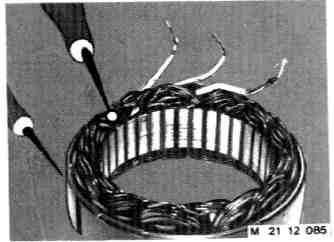

Stator Coil Ground Contact Test:





- Hold test leads for resistance tests on soldering point and stator (coil carrier).
- Nominal value: infinity equal to display of 999 k-ohms.

Stator Coil Break Test:





- Compare resistance values of leads 1/2, 1/3 and 2/3 with an ohmmeter they should be the same.
- Checking for shorted turns can be performed with a standard tester.
