Alternator Bearing: Service and Repair

REPLACING BALL BEARING - Alternator Removed and Disassembled -





Bosch Alternators:

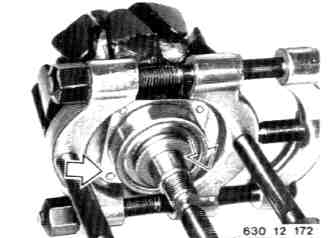

- Pull off hearing with Special Tool 00 7 500.

Installation Note:

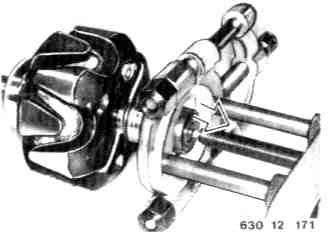

- Replace cover for bearing, if it is damaged by the special tool while pulling off the bearing.

Installation Note:





- Check location of washer collar facet the bearing.
