Checking Fuel Delivery Rate
CHECKING FUEL DELIVERY RATE

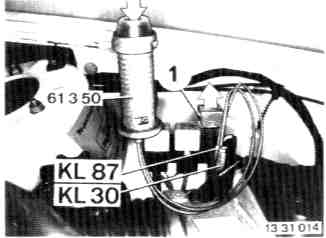

- Disconnect fuel return line and hold end in measuring glass 13 3 020.
- Pull off fuel pump relay (1).
- Bridge terminals 87 and 30 with Special Tool 61 3 050.
- Check delivery rate.
- Disconnect fuel return line and hold end in measuring glass 13 3 020.
- Pull off fuel pump relay (1).
- Bridge terminals 87 and 30 with Special Tool 61 3 050.
- Check delivery rate.
