Symptom Troubleshooting Fuel Injection

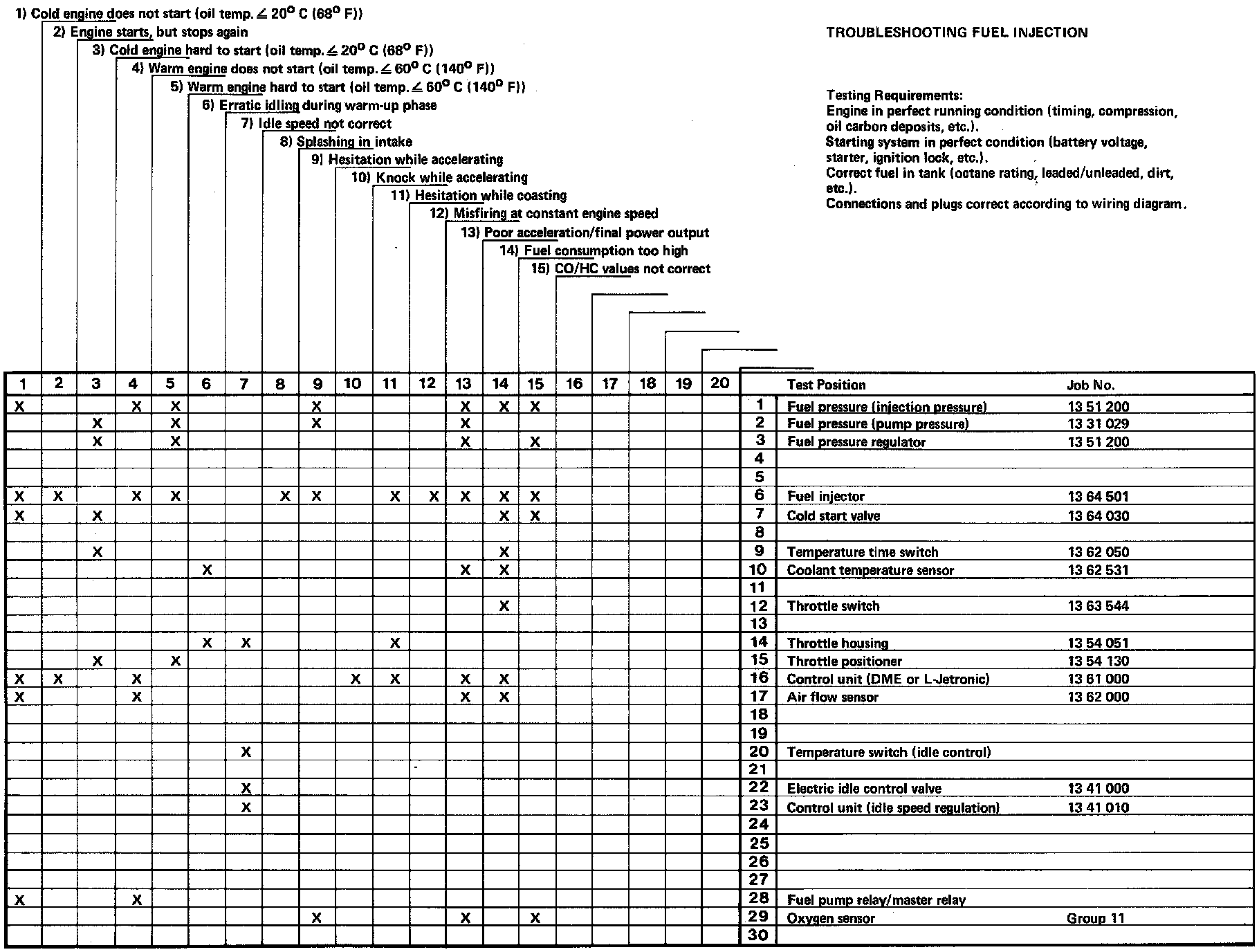

TEST POSITIONS FOR FUEL INJECTION TROUBLESHOOTING CHART





Note: These points are compiled on the basis of greatest probability, so that under certain circumstances additional tests could be necessary.
See operating instruction of BMW service test unit for connections.
