Starter Solenoid: Service and Repair

- Remove and install Starter.

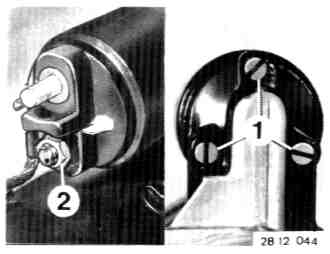

- Unscrew bolt (1).
- Unscrew nut (2).

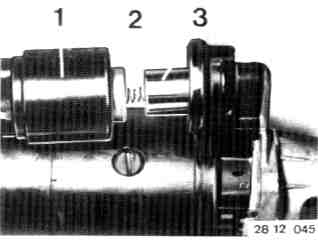

- Remove solenoid switch (1) with spring (2).
- Disconnect and remove armature (3).

Installation Note:
- Check armature (3) for wear (scoring, deep spots, etc.), replacing if necessary.
- Lubricate with grease before installing.
