Removing and Installing Starter

- Disconnect battery ground lead.
- Remove air cleaner with air flow sensor.

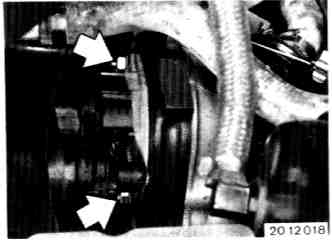

- Unscrew bracket for air collector.

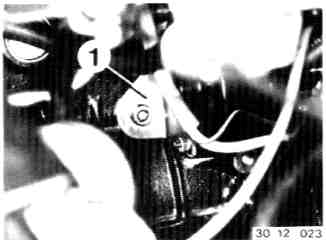

- Unscrew holder.
- Disconnect lines.





- Drain coolant.

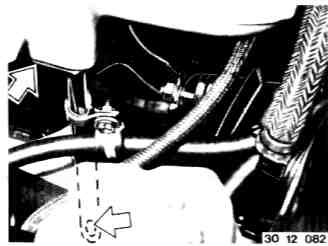

- Disconnect heater hose, unscrewing coolant pipe if necessary.
- Unscrew nuts and remove starter from above.

Installation Note:
- Pour in coolant and bleed cooling system.
