Removing and Installing Alternator

REMOVING AND INSTALLING ALTERNATOR

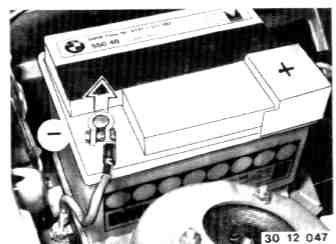

- Disconnect battery.

Caution: Disconnect wire between battery and alternator only when engine is stopped.

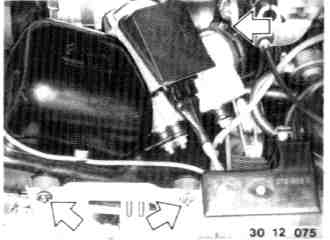

- Remove air cleaner and air flow sensor.

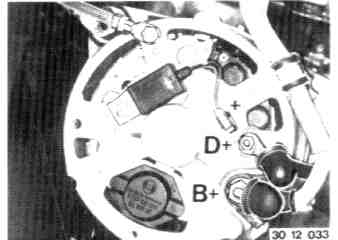

- Unscrew connections B + and D +. Disconnect ground wire.





- Unscrew mounting bolts.
- Remove alternator.

Installation Note:

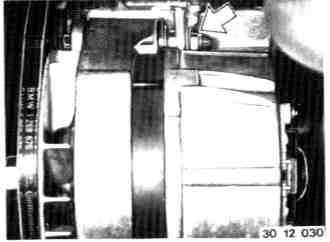

- Don't forget the ground wire (see arrow).
- Tighten drive belt.
