Diode Trio: Service and Repair

REPLACING DIODE PLATE - Alternator Removed and Disassembled -

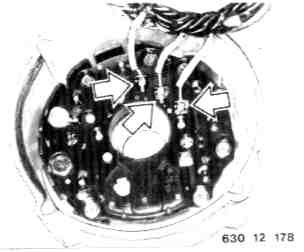

- Unsolder stator coil on diode plate.

Caution: Excessive heat from soldering iron would destroy the diodes.





- Unscrew bolts.
- Remove diode plate.





Installation Note:

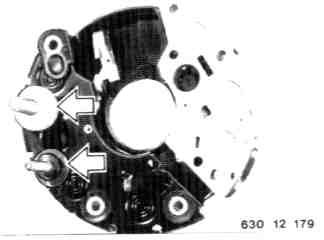

- Check condition of insulating sleeves and insulators.
