Alternator Bearing: Service and Repair

REPLACING BALL BEARING - Alternator Removed and Disassembled -

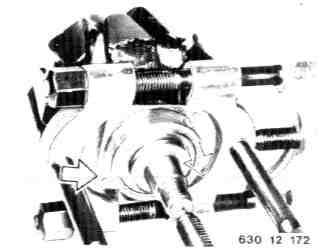

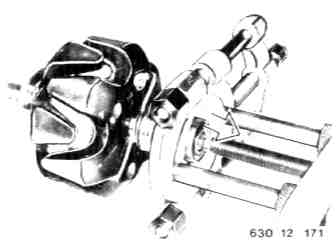

- Pull off bearing with Special Tool 00 7 500.

Installation Note:





- Replace cover for bearing, if it had been damaged through application of special tool.

Installation Note:

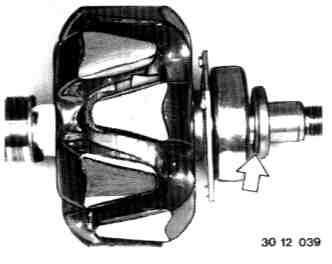

- Check installed position of washer - collar faces bearing.
