Home >> BMW >> 1985 >> 318i (E30) L4-1766cc 1.8L SOHC (M10) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Ignition System >> Ignition Control Module >> Testing and Inspection >> Tests For Troubleshooting Transistor Coil Ignition (Tci) >> Test 4 Tci Control Unit

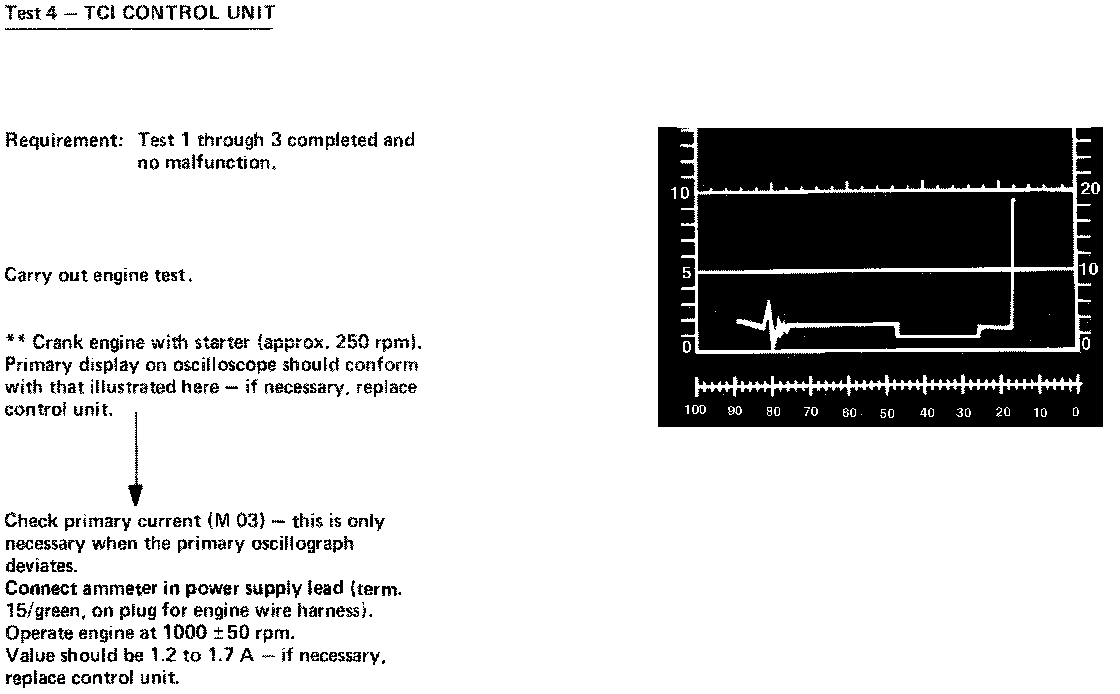

Test 4 Tci Control Unit

Test 4 - TCI Control Unit:
