Pressure Test

CHECKING FUEL DELIVERY PRESSURE

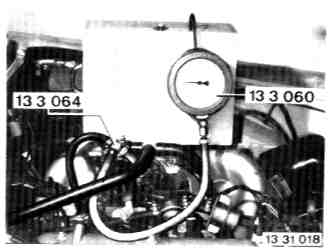

- Install pressure tester 13 3 060 with connecting line and T-adapter 13 3 064 in the fuel feed line - in front of fuel pressure regulator.
- Plug fuel return line with Special Tool 13 3 010.

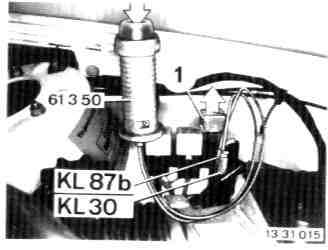

- Pull off fuel pump relay (1).
- Bridge terminals 87b and 30 with Special Tool 61 3 050.
- Check delivery pressure.
