Checking Fuel Delivery Rate

CHECKING FUEL DELIVERY RATE

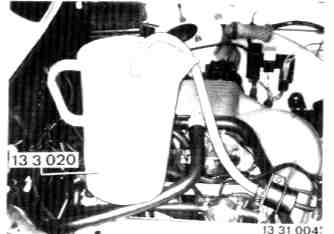

- Unscrew fuel return line and hold end of hose in measuring glass 13 3 020.

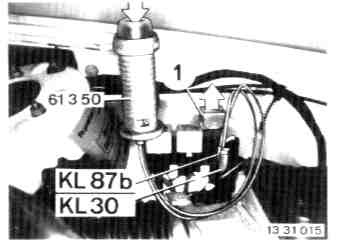

- Pull off fuel pump relay (1).
- Bridge terminals 87b and 30 with Special Tool 61 3 050.
- Check delivery rate.
