Replacing Pulse Transmitter

REPLACING PULSE TRANSMITTER





- Remove distributor.
- Unscrew vacuum control and let it hang down.

Installation Note:

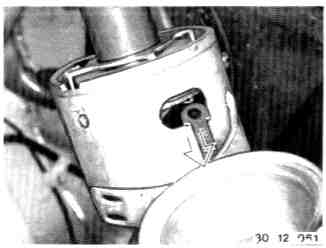

- Lubricate connecting rod with grease at opening.





- Remove circlip.

Installation Note:

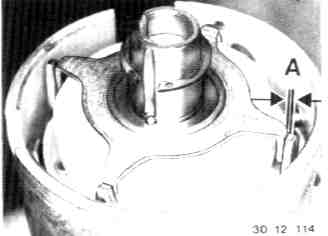

- Press distributor shaft in direction of pulse transmitter tooth (stator) and check pulse transmitter distance (A).
- Correct by loosening and centering the carrier plate.

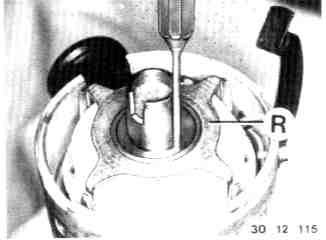

- Knock down dowel pin with an impact mandrel and take of pulse transmitter gear (rotor).





- Remove circlip.

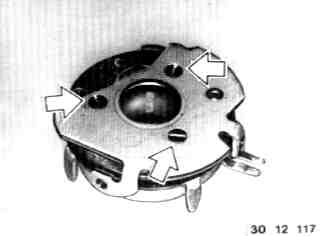

- Unscrew plug receptacle and screws.





- Unscrew pulse transmitter on carrier plate.

Installation Note:

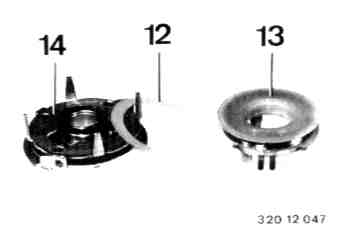

- Check arrangement of carrier plate connections as shown.





Arrangement:
12 Insulator
13 Pulse transmitter
14 Carrier plate

- Adjust ignition timing after finishing installation.
