Recall - Idle Control Valve, Backfire/High Idle
85bmw08GROUP 13 Fuel System
Bulletin Number 13 03 85 (1031) Page 1 of 2
Montvale, NJ July 1985 Technical Dept.
SUBJECT: Recall Campaign 85V-058 Idle Control Valve
MODELS: 318i, 318iA
BMW of North America, Inc. has voluntarily initiated a safety-related defect recall campaign. The NTHSA-assigned Recall Campaign Number is 85V-058.
This Service Information Bulletin outlines the specific procedures for the implementation of the campaign. A copy of the customer letter is enclosed for your information.
VEHICLES AFFECTED
The affected vehicles are 1984 model year 318i and 318iA produced from January 1983 through October 1983 (inclusive).
The affected component is the idle control valve (P/N 13 42 1 285 095).
Model Chassis Number Ranges
318i 8415000 - 8419999
8700000 - 8708729
9020000 - 9024183
9025001 - 9029486
318iA 8420000 - 8424999
8685000 - 8685971
DESCRIPTION OF DEFECT
These vehicles are equipped with an idle control valve which controls idle speed by varying the amount of intake air that bypasses the throttle plate. If the correct starting procedure (foot off gas pedal) specified in the Owner's Handbook is not followed, it is possible for a backfire into the intake manifold to occur. Such a backfire can damage the internal components of the valve and cause the idle valve plate, which regulates air flow, to remain open. This will result in abnormally high idle speed.
INSPECTION/REPAIR

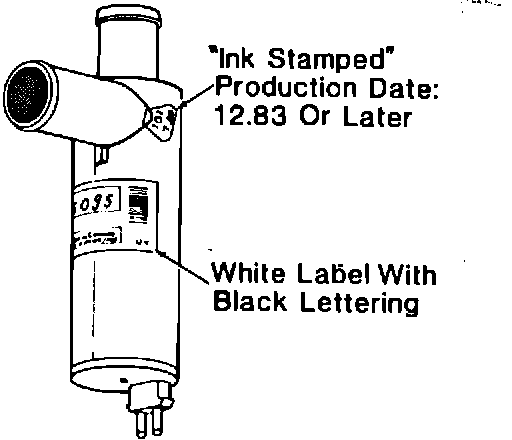

1) Check the idle control valve for identification:
a) white label with black lettering
b) abbreviated part number: 1 285 095
c) "ink stamped" production date: 12.83 (or later)
2) If the valve does not correspond to the identification criteria listed above, e.g. production date stamp indicates it was produced before 12.83, it should be replaced with a new idle control valve P/N 13 42 1 285 095 that matches the identification criteria.
WARRANTY STATUS
Reimbursement for this recall campaign will be provided through Campaign Entry.
Defect Code: 00 00 13 62 00
Work Package #1 Inspection/verification of idle control valve. Vehicle equipped with correct "criteria" idle valve.
Labor: 1 Flat Rate Unit
Work Package #2
Installation of idle control valve
Labor: 2 Flat Rate Units
Part Number Description Quantity
13 42 1 285 095 Idle Control Valve 1
June, 1985
RE: Recall Campaign No. 85V-058
Dear BMW Customer:
This notice is being sent to you in accordance with the requirements of the National Traffic and Motor Vehicle Safety Act.
BMW-AG has determined that a defect which relates to motor vehicle safety exists in certain 1984 BMW 318i automobiles. Our records indicate that you are the owner of a potentially affected vehicle.
Your vehicle is equipped with an idle control valve which controls idle speed by varying the amount of intake air that bypasses the throttle plate. If the correct starting procedure (foot off gas pedal) specified in your Owner's Manual is not followed, it is possible for a backfire into the intake manifold to occur. Such a backfire can damage the internal components of the valve and cause the idle valve plate, which regulates air flow, to remain open. This will result in abnormally high idle speed.
Precautions
1. Contact your Authorized BMW Dealer immediately to make an appointment to have the necessary repair performed.
2. Before the repair is performed, always follow the BMW-specified procedure (foot off gas pedal) when starting the engine.
3. Should a backfire occur during starting, resulting in abnormally high idle speed, the increased engine noise level and tachometer reading will indicate that idle speed has significantly increased. In this case, additional care should be taken when operating your vehicle. It should be driven slower and the following distance behind other cars should be increased. Arrangements for repair should be made as soon as possible.
4. If the prior warnings of increased engine noise level and tachometer reading are not heeded, a vehicle crash could occur, depending on environmental and traffic conditions.
We ask you to make an appointment with your Authorized BMW Dealer to arrange for repair as soon as possible. The repair consists of installing a redesigned idle control valve which cannot stick open even if a backfire were to occur during starting.
This repair will require approximately one half hour to one hour and will be performed by your Authorized BMW dealer at no charge to you.
If you are no longer the owner of this vehicle, we would appreciate your furnishing us with the name and address of the new owner, using the enclosed return postage-paid card.
We appreciate your confidence in our product and we wish to do everything we can to retain that confidence. Should you have any questions about this campaign, please contact your Authorized BMW Dealer, or one of our regional Customer Relations Departments at:
1. BMW of North America, Inc. Walnut & Hudson Avenues Norwood, NJ 07648
Telephone: (201) 784-0145
2. BMW of North America, Inc. 12541 Beatrice Street Los Angeles, CA 90066
Telephone: (213) 305-2913
3. BMW of North America, Inc. 1002 E. Algonquin Road Schaumburg, III. 60195
Telephone: (312) 397-5700
4. BMW of North America, Inc. 2300 Valley View Lane, Suite 300 Dallas, TX 75381
Telephone: (214) 484-4840
5. BMW of North America, Inc. 6160 Peachtree-Dunwoody Road Suite A-100 Atlanta, GA 30328
Telephone: (404) 399-5979
6. BMW of North America, Inc. 6606 Owens Drive Pleasanton, CA 94566
Telephone: (415) 463-0725
7. BMW of North America, Inc. 1861 Wiehle Avenue Suite 300 Reston, VA 22090
Telephone: (703) 478-2800
If the dealer is unable to remedy the defect without charge or within a reasonable period of time, you may notify the Administrator of the National Highway Traffic Safety Administration, Nassif Building, 400 7th Street SW, Washington, DC 20590, or call the toll-free Auto Safety Hotline at (800) 424-9393 (Washington, DC area residents: 426-0123).
