Removing and Installing Idle Control Valve

REMOVING AND INSTALLING IDLE CONTROL VALVE

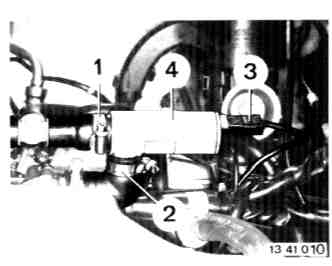

- Loosen hose straps (1 and 2).
- Pull off plug (3).
- Take off idle control valve (4).

Installation Note:

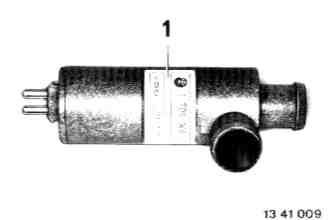

- Check code number (1).
- Check idle speed.

B) With Basic Setting Screw:





- Disconnect strap.

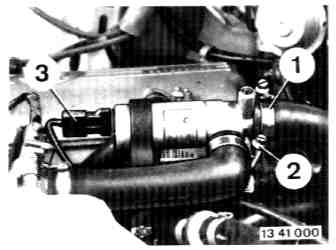

- Loosen hose straps (1 and 2).
- Pull off plug (3).
- Take off idle control valve.

Installation Note:
- Make basic setting.
- Check idle control valve.
- Supply battery voltage to idle control valve.
- Idle control valve must close and be tight.
- The idle control valve should be open when electric power it taken away.
