Timing Component Alignment Marks: Locations

Timing Component Alignment Marks

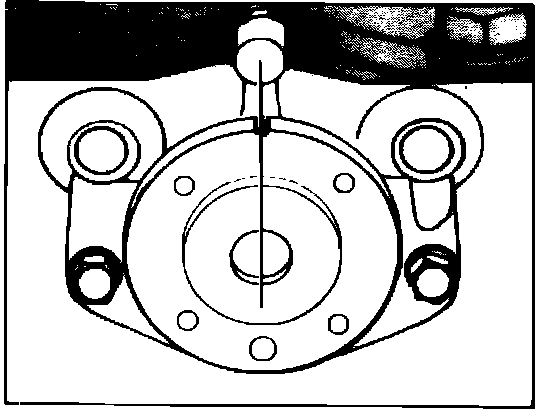

Align cam flange with notch facing up in line with projection above it and with bore hole facing down. Crankshaft at top dead center.

For further information refer to Timing Chain : Service and Repair
Service and Repair

CAUTION!:
- Incorrect setting/installation could damage or break the camshafts.
- Valves could also be bent through contact with the piston crowns.
- Never crank engine after removing chain.
- Always note installation instructions and use specified special tools, procedures, and sequences.
