Fuel Filter: Service and Repair

REMOVING AND INSTALLING FUEL FILTER

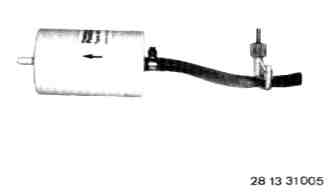

Note: Remove fuel filter with fuel feed line and Special Tool 13 3 010.

Installation Note:





- Check direction of flow (arrow).

REMOVING AND INSTALLING FUEL FILTER

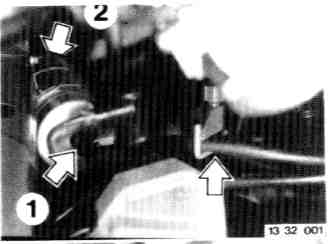

- Disconnect fuel feed pipe before and after the filter with Special Tool 13 3 010.
- Unscrew bolts.

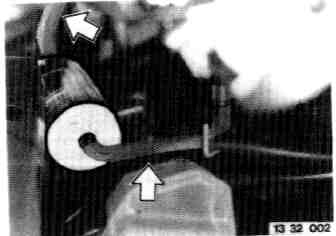

- Loosen hose clamps (1 and 2).
- Pull off fuel hoses.
- Remove filter.

Installation Note:





- Check direction of flow (arrow).
