Ignition Coil: Service and Repair

Caution: Always turn off ignition before working on the ignition system dangerous high voltage!

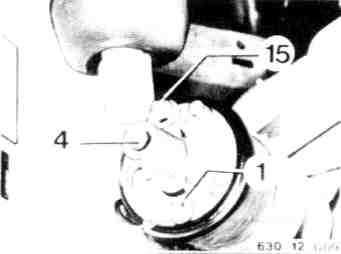

- Pull off protective cap and ignition lead (term. 4).
- Unscrew connections (term 1 and 15).
- Unscrew holder and take off ignition coil.

Installation Note:





- Check new ignition coil for correct code number and color label.
