BMW
>>
1984
>>
528e (E28) L6-2693cc 2.7L SOHC (M20)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Rear Defogger
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

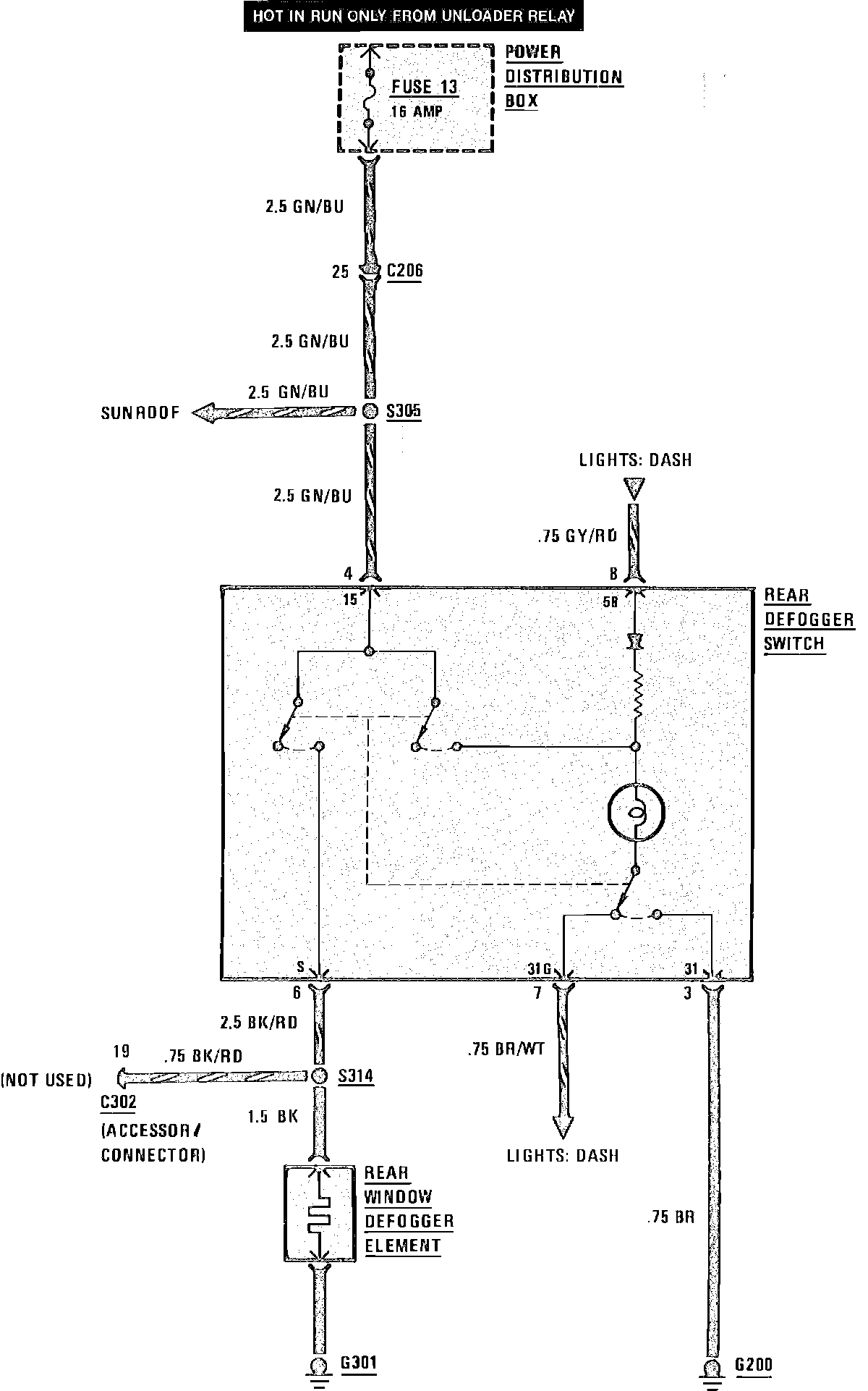

Fig. 142 Rear Defogger Wiring Circuit:
