Replacing One Fuel Injector

REPLACING ONE FUEL INJECTOR

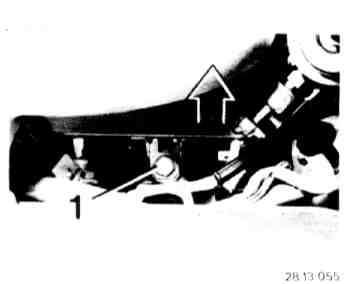

- Unscrew four mounting bolts (1) of injection pipe.
- Push up injection pipe until fuel injectors have cleared the guide on the intake manifold.

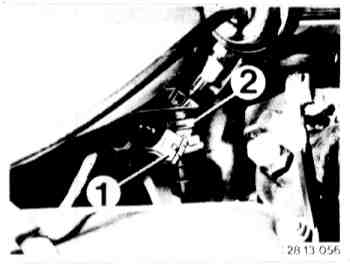

- Pull off plug (1) on fuel injector.
- Lift out retainer (2) and pull fuel injector out of injection pipe.

Installation Note:

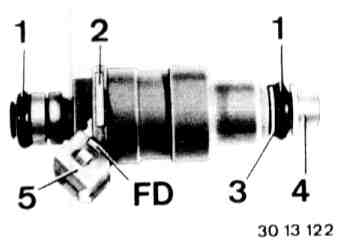

- Check O-rings (1), replacing if necessary.
- Check code number (2).
FD = Manufacturing date.
- Check position of plastic washer (3).
- Check color of plug receptacle (5) or injector guard (4).
- Only coat O-rings for installation with Vaseline or SAE 90/SAE 80 gear lube.
