Blower Motor Resistor: Service and Repair

Removing and Installing Resistor Plate on Evaporator Housing

- Open glove box.

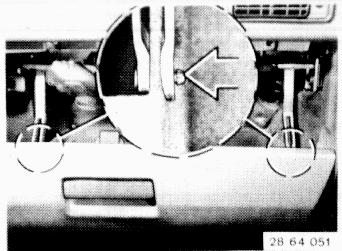

- Disconnect pins of both retaining straps.

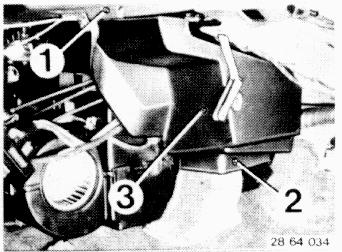

- Unscrew bolts (1 and 2) and remove trim panel (3).





- Pull off plug.

Installation:

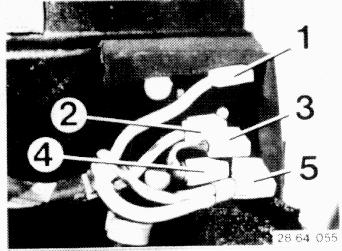

Plug Connections of Resistor Plate
1 = violet
2 = gray
3 = brown
4 = brown
5 = brown/black and white

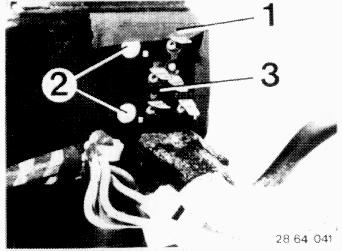

- Pull off insulating tape (1).

- Cut off rivets (2).

- Remove resistor plate (3).

- Reverse procedure to install.
