Home
>>
BMW
>>
1984
>>
528e (E28) L6-2693cc 2.7L SOHC (M20)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
System Diagram
>>
DME Connector
DME Connector

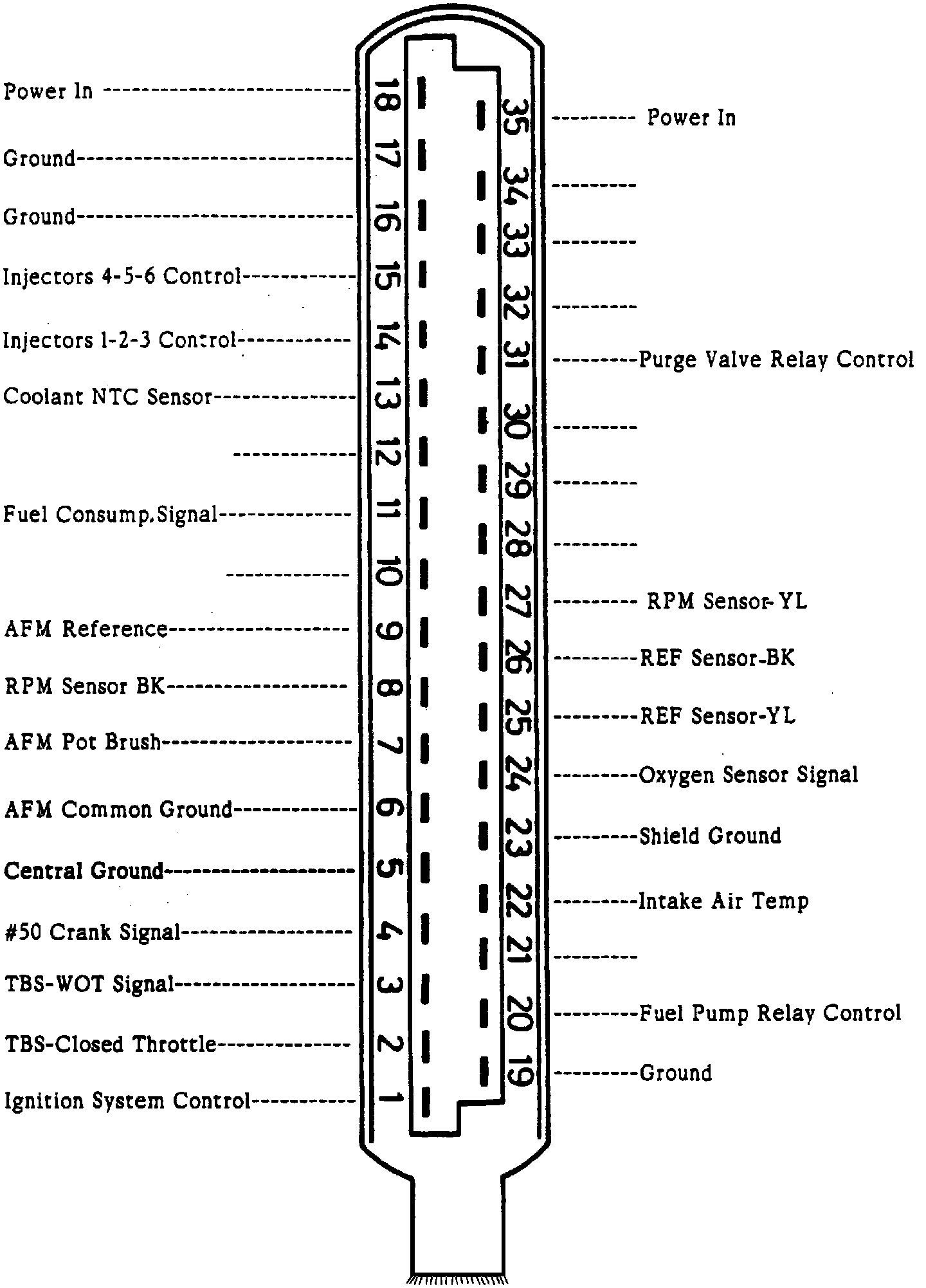

View - DME Connector:
