Fuses (on Fuse Panel), A-Pillar, Right

Fuses

Fuses (on fuse panel), A-pillar, right

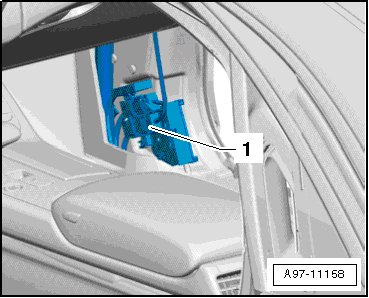

Component Location:





On right lower A-pillar -1- .

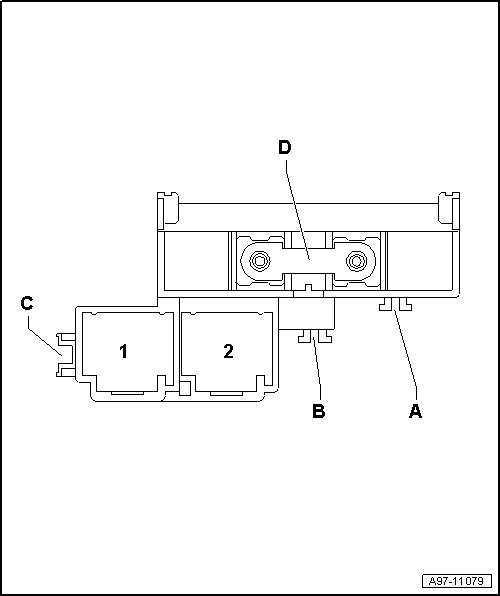

A - Not used

B - Not used

C - ABS Control Module Fuse 1 -S123- , 50 A
• Only left-hand drive

D - Auxiliary Heater Fuse -S126- , 150 A
