Fuses (SF) on Fuse Panel F

Fuses

Fuses (SF) on fuse panel F

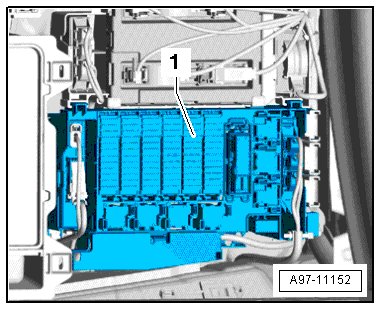

Component Location:





In luggage compartment, front right -1-.

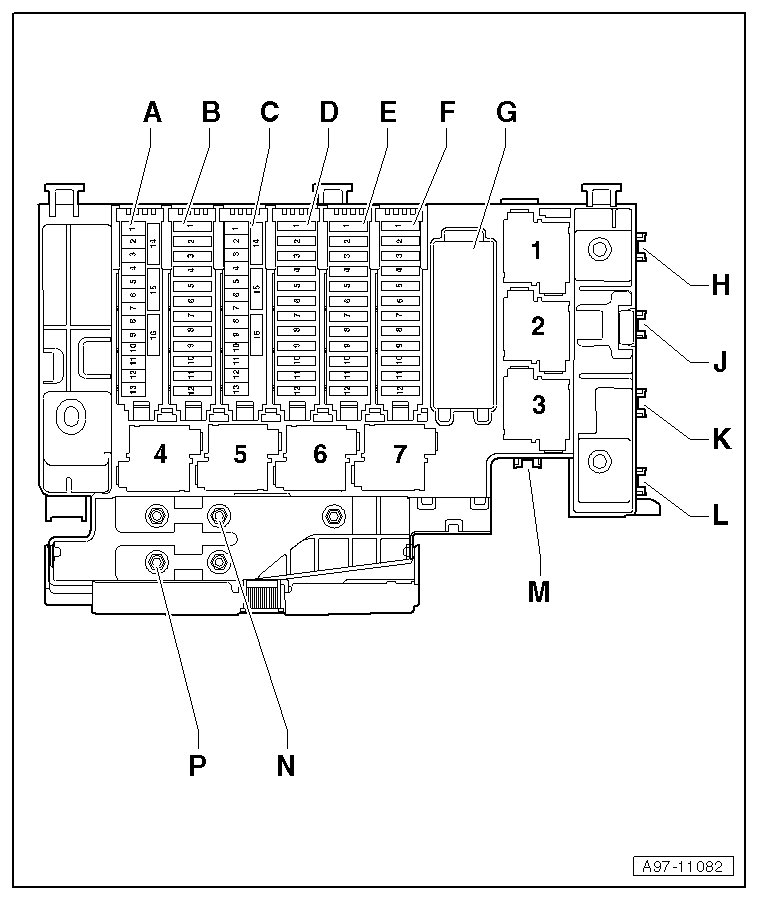

A - Fuse Carrier ST1 (black)
• Position of fuses => [ Position of Fuses Fuse Carrier ST1 (black) ]

B - Fuse Carrier ST2 (red)
• Position of fuses => [ Position of Fuses Fuse Carrier ST2 (red) ]

C - Fuse Carrier ST3 (brown)
• Position of fuses => [ Position of Fuses Fuse Carrier ST3 (brown) ]

D - Fuse Carrier ST4 (black)
• Position of fuses => [ Position of Fuses Fuse Carrier ST4 (black) ]

E - Fuse Carrier ST5 (red)
• Position of fuses => [ Position of Fuses Fuse Carrier ST5 (red) ]

F - Fuse Carrier ST6 (brown)
• Position of fuses => [ Position of Fuses Fuse Carrier ST6 (brown) ]

G - 46-Pin Connector -T46- , black, CAN Separating Connector

H - Heated Rear Window Fuse -S41- , 40 A

J - Self-Leveling System Fuse -S110- , 40 A

K - Stop/Start Mode Fuse -S349- , 40 A

L - Front Passenger's Power Seat Adjustment Circuit Breaker 1 -S46- , 15 A

M - Not used

N - Safety Fuse 1 -S131-
• Left-hand drive 80 A

P - Safety Fuse 2 -S132- , 110 A

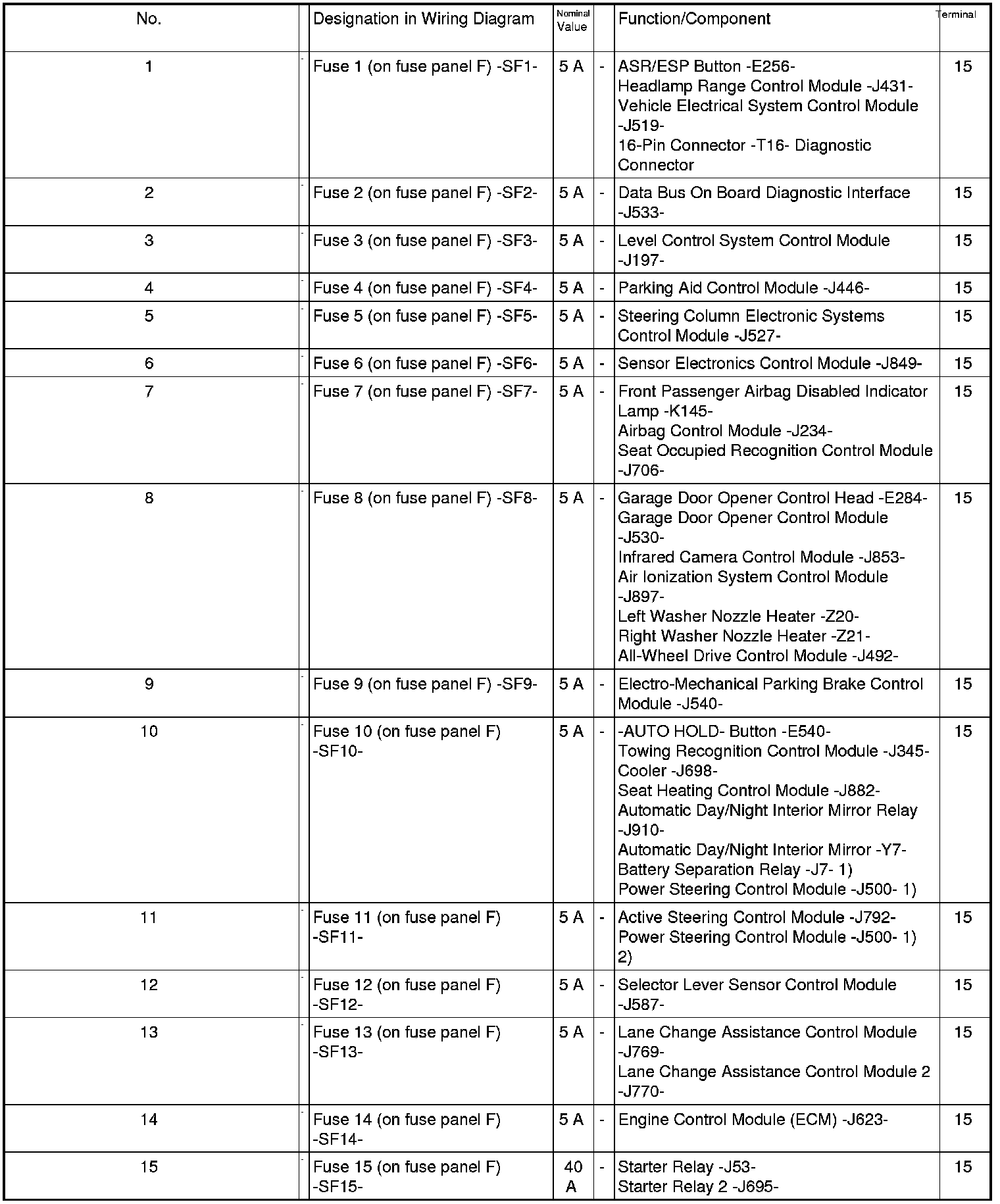

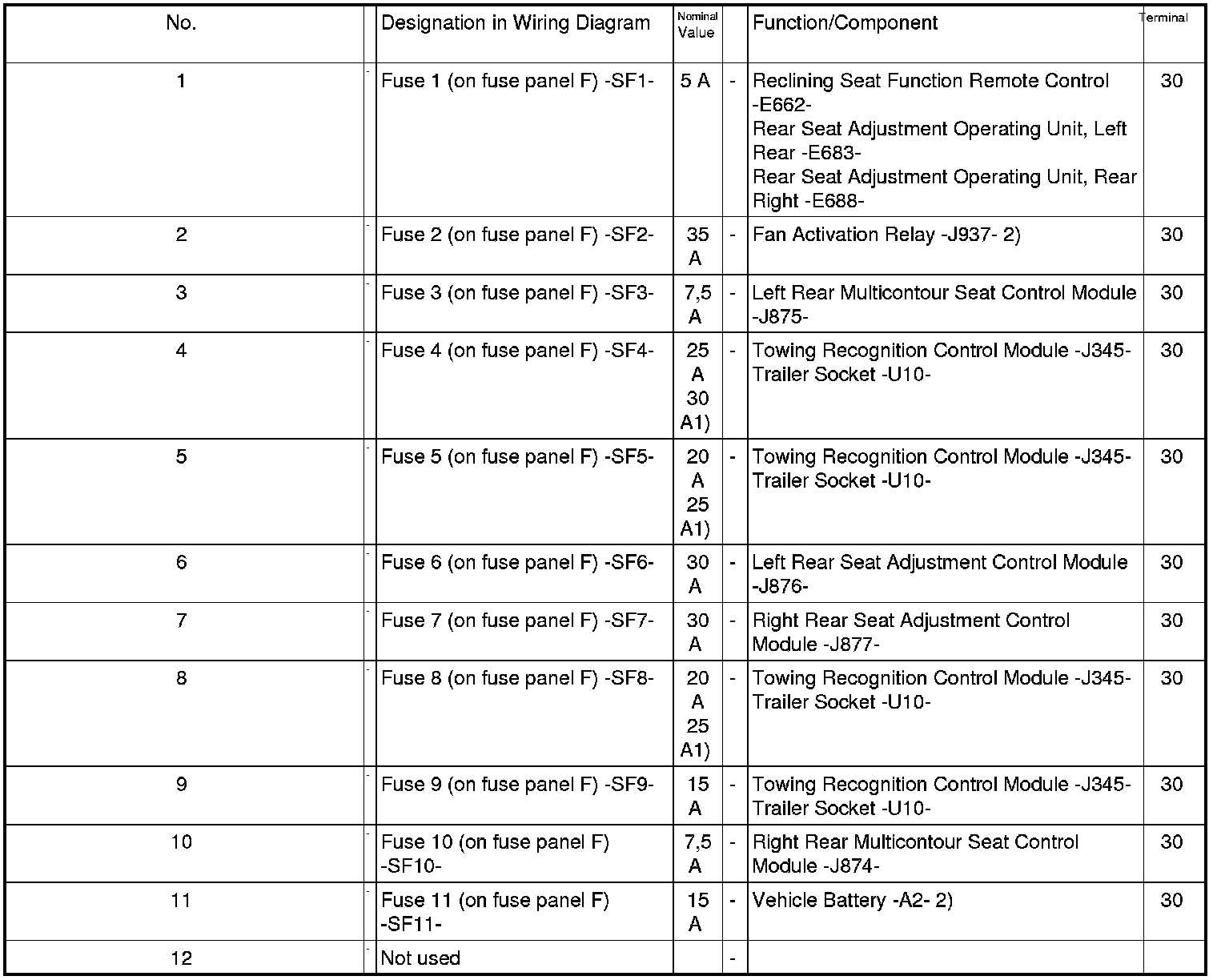

Position of Fuses Fuse Carrier ST1 (black)












Note:
• 1) only High-Voltage Models

• 2) Insert

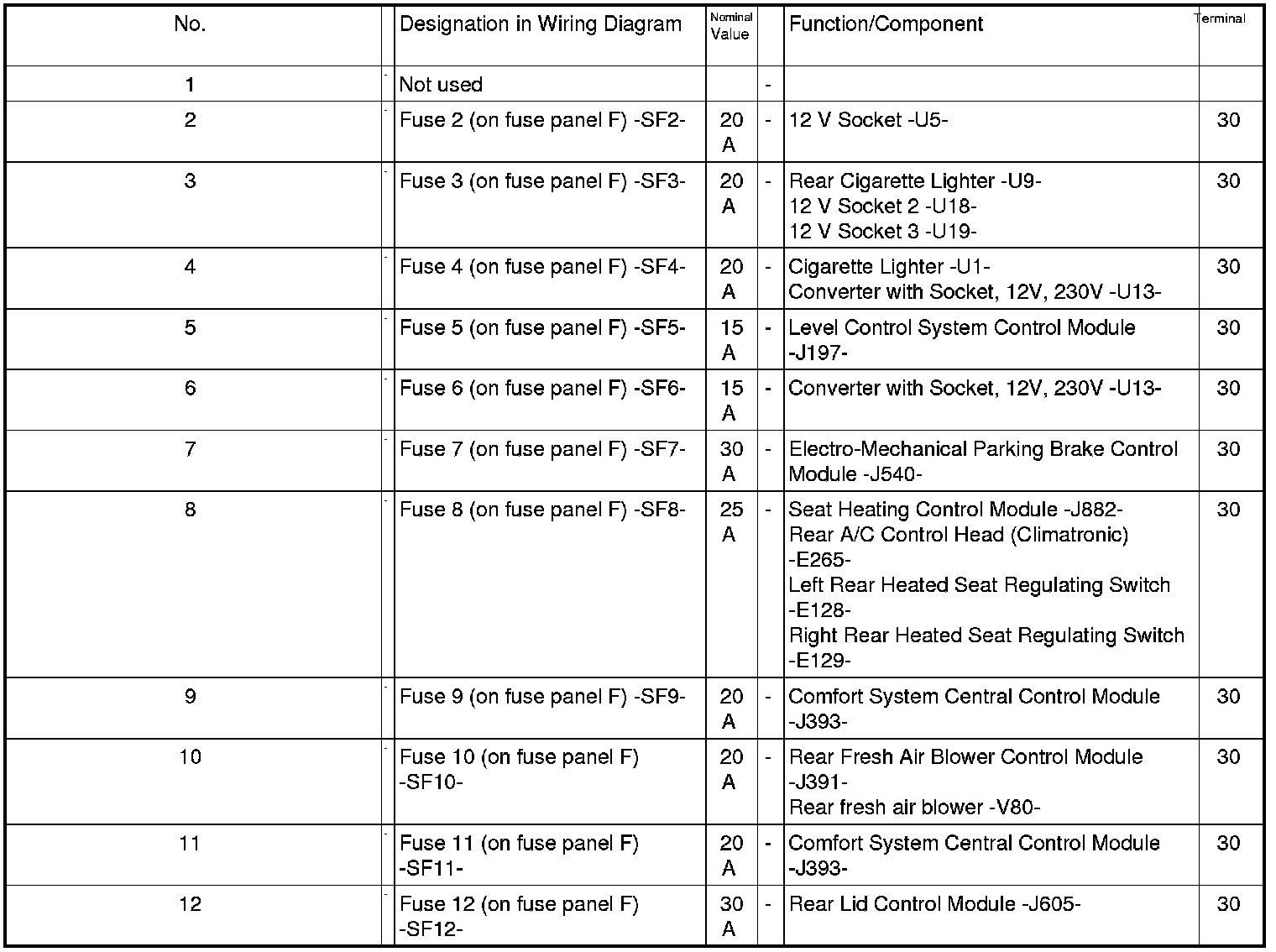

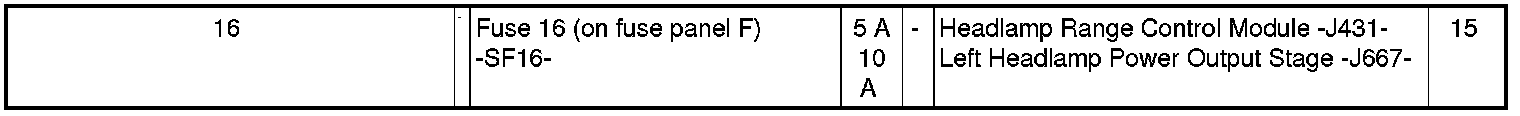

Position of Fuses Fuse Carrier ST2 (red)








Note:
• 1) Only rental car equipment

• 2) Only council car equipment

• 3) Only with cylinder 6 diesel engine

• 4) Only engine codes CDTA, CDTB, CLAB, CEJA

• 5) Only engine codes CEUA, CGTA

• 6) Only high-voltage models

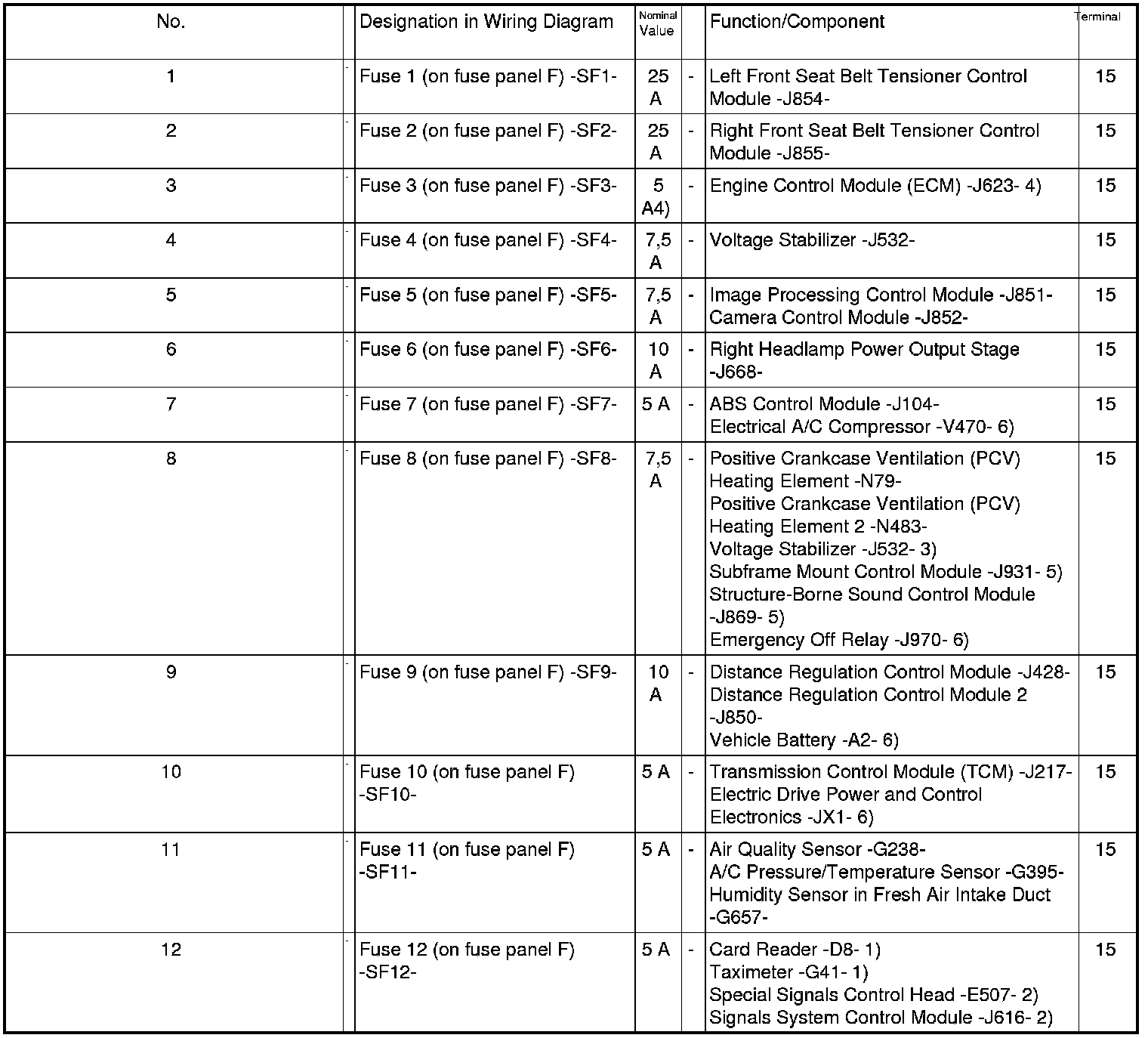

Position of Fuses Fuse Carrier ST3 (brown)








Note:
• 1) Through May 2011

• 2) from June 2011

• 3) Only engine codes CEUA, CGTA

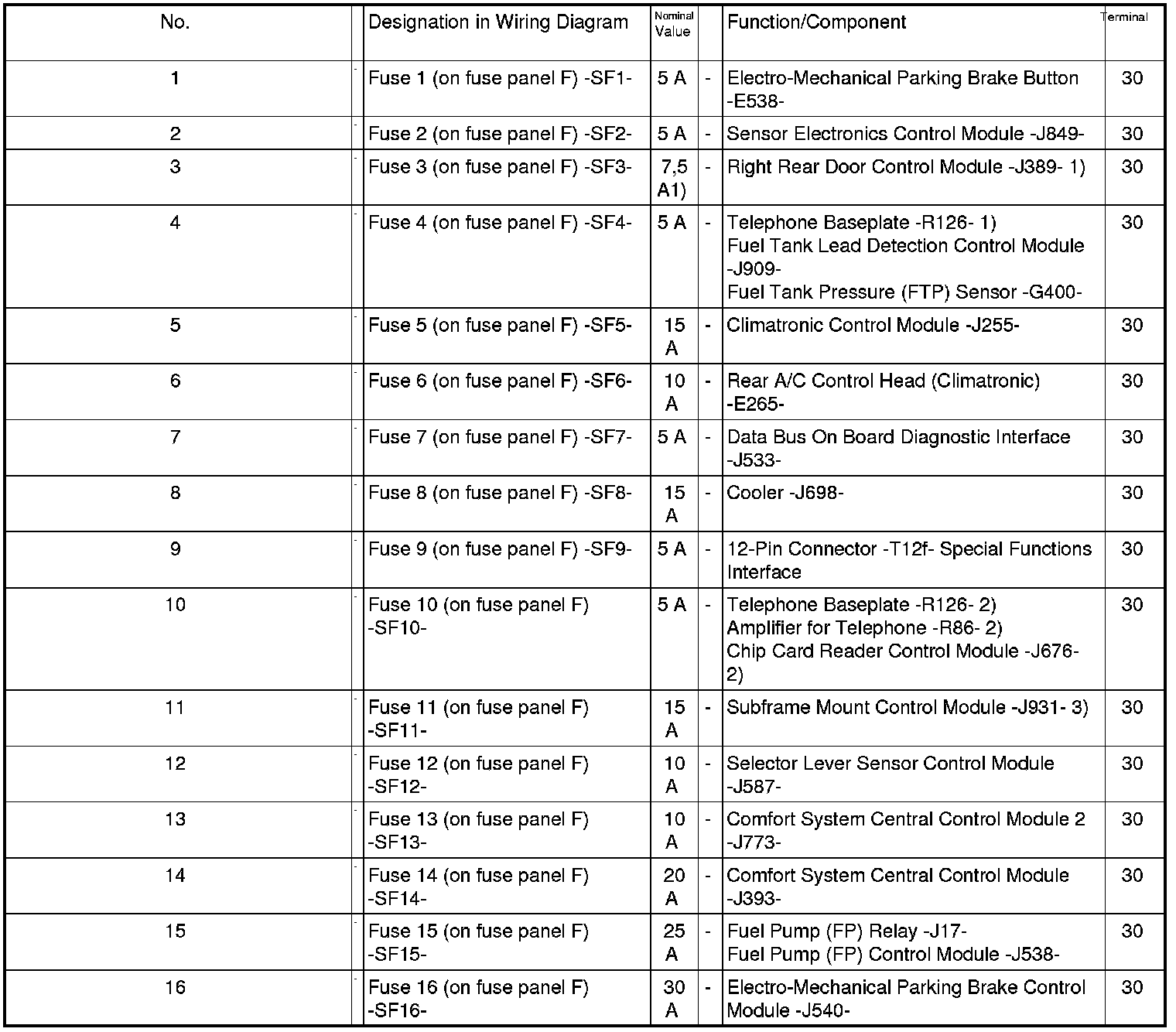

Position of Fuses Fuse Carrier ST4 (black)









Position of Fuses Fuse Carrier ST5 (red)








Note:
• 1) from June 2011

• 2) Only high-voltage models



Position of Fuses Fuse Carrier ST6 (brown)








Note:
• 1) Through May 2011

• 2) from June 2011

• 3) Only high-voltage models
