Fuses (SB) on Fuse Panel B, Left-Hand Drive







Fuses

Fuses (SB) on fuse panel B, left-hand drive

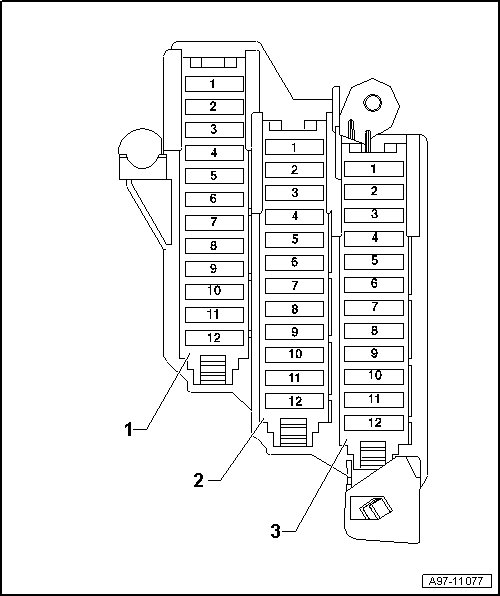

Component Location:





On right instrument panel -2-.





1 Not used
2 Fuse Carrier ST2 (black)
Position of fuses => [ Position of Fuses Fuse Carrier ST2 (black), left-hand drive ]
3 Fuse Carrier ST3 (red)
Only special purpose vehicle
Position of fuses => [ Position of Fuses Fuse Carrier ST3 (red), left-hand drive ]

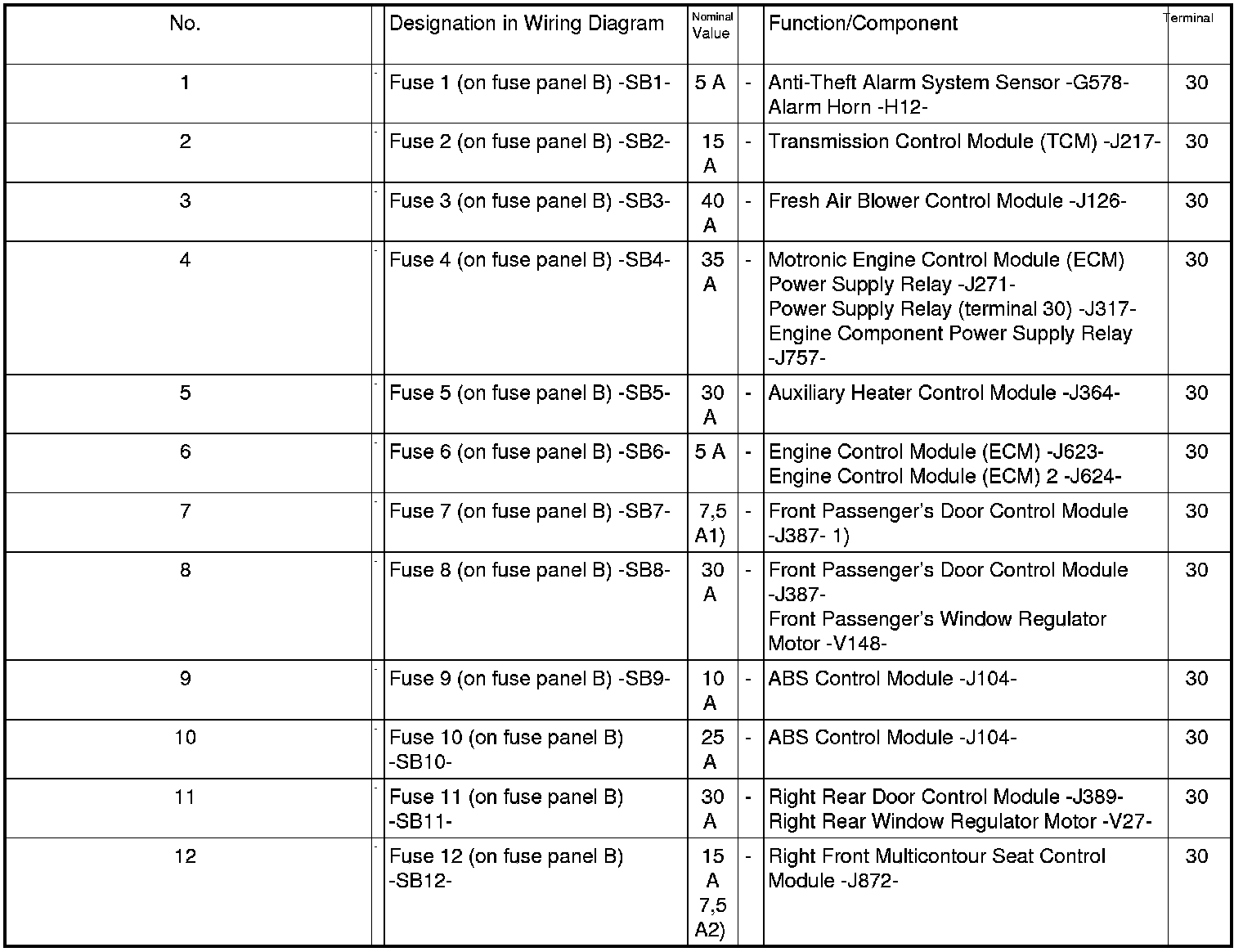

Position of Fuses Fuse Carrier ST2 (black), left-hand drive








Note:
1) Through May 2011

2) from June 2011

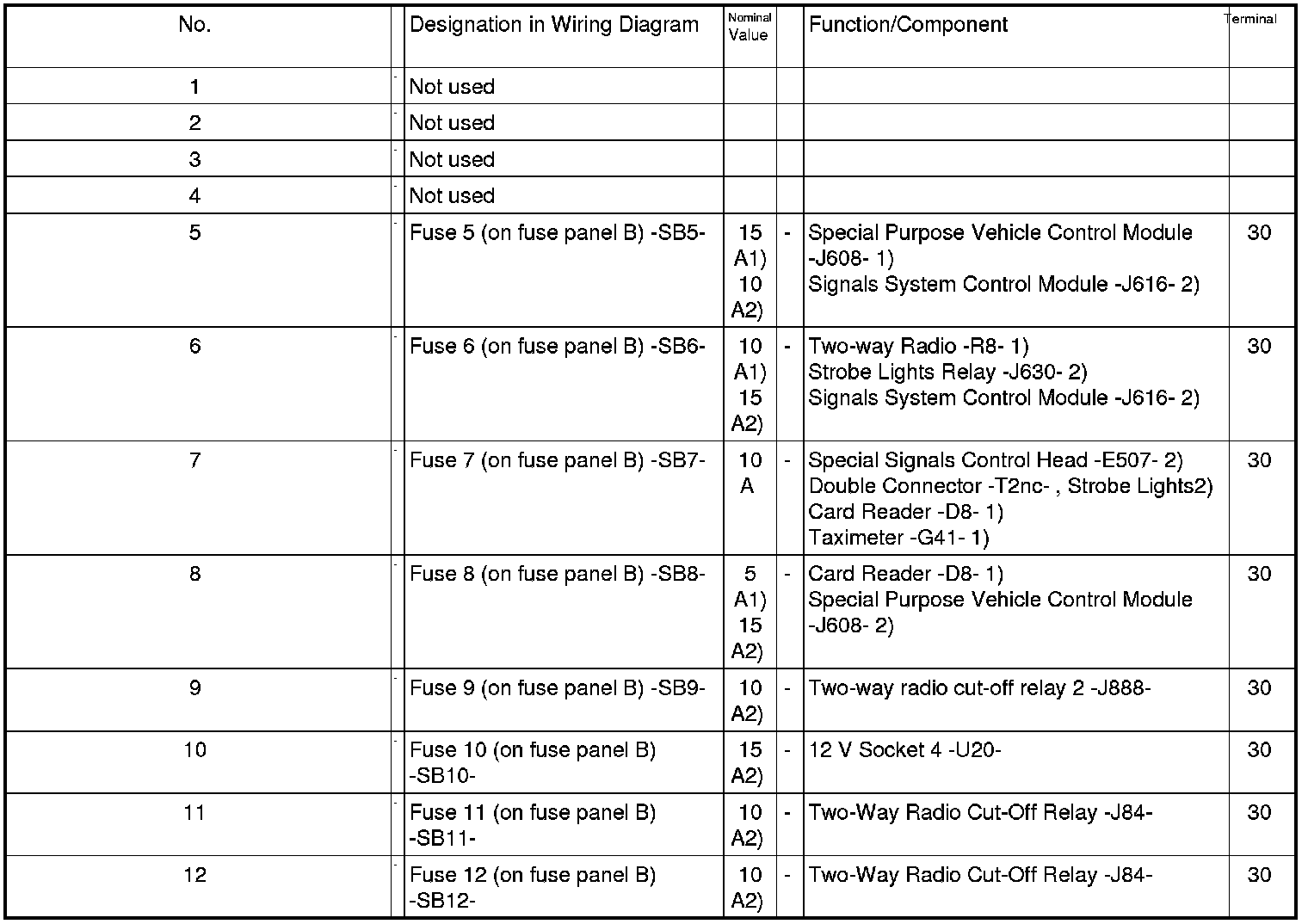

Position of Fuses Fuse Carrier ST3 (red), left-hand drive








Note:
1) Only rental car equipment

2) Only council car equipment
