Fuse Panel D -SD-

Component Location Fuse Panel D -SD- for models with left-hand drive
Below front passenger's instrument panel cover





ST1 - Fuse Carrier 1, Fuses
ST2 - Fuse Carrier 2, Fuses
A - 46-Pin Connector, black, CAN separating connector, instrument panel -T46s-

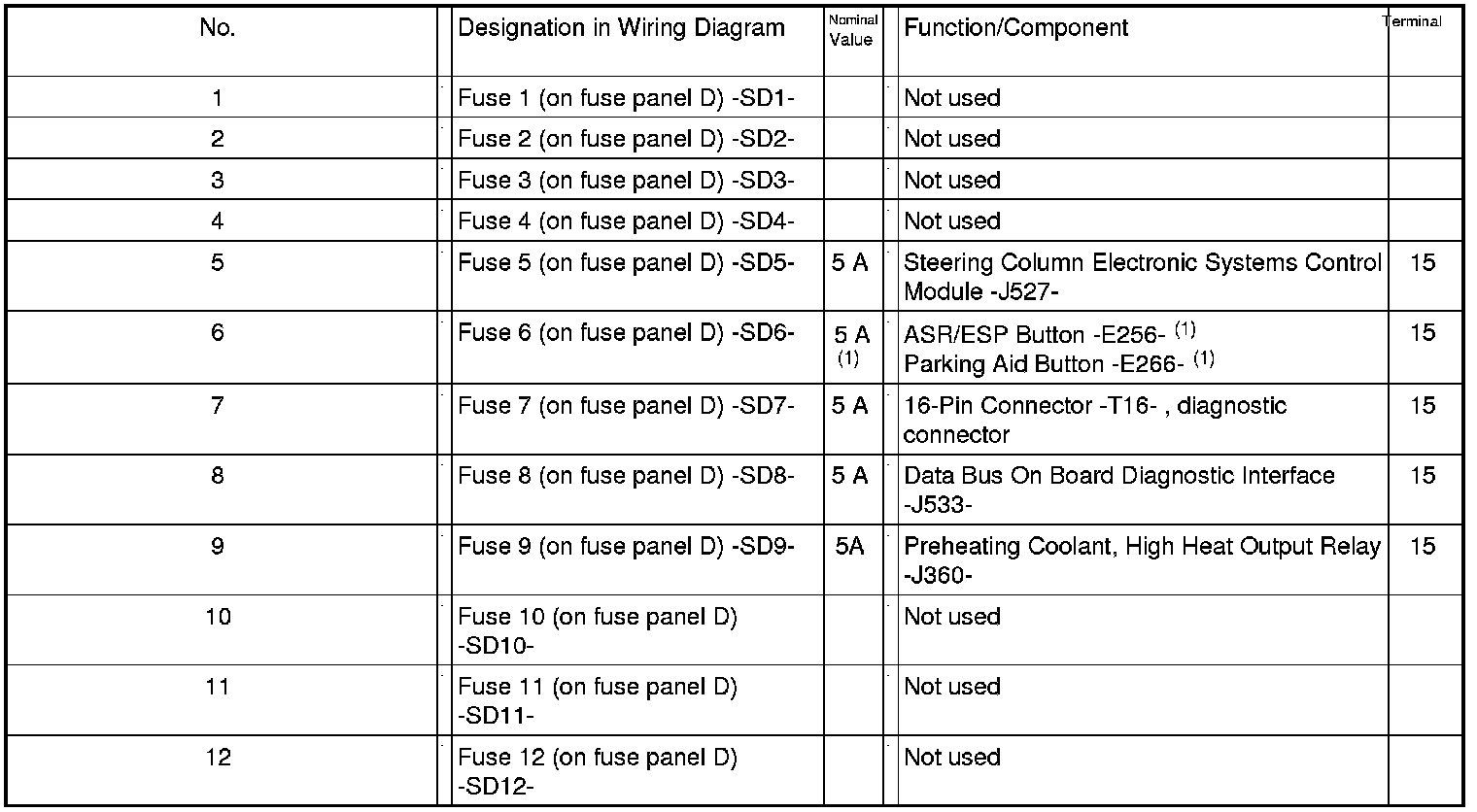

Fuses in Fuse Carrier ST1 on Fuse Panel D -SD- (black)
1) Applicable through July 2011





Fuses in Fuse Carrier ST2 on Fuse Panel D -SD- (brown)
1) Only models with radio (CAN) with external amplifier
2) Only models with MMI (MOST)
3) Only models with radio chorus and soundsystem Basic (from November 2009)
4) Only models with radio chorus / concert / symphony and soundsystem Basic (from May 2010)
5) Applicable through July 2011
