Manual Transmission, Checking Gear Oil Level

Manual Transmission, Checking Gear Oil Level

• The manual transmission and bevel box have separate supplies.

• Axle oil level in bevel box, checking. Refer to => [ Gear Oil in Bevel Box, Checking ] Gear Oil In Bevel Box, Checking.

• Transmission oil specification, refer to the electronic parts catalog ETKA.

Special tools, testers and auxiliary items required

• Triple Square Socket Driver (3357)

• Used Oil Collecting and Extracting Device (V.A.G 1782)

Procedure

• Tightening specification, refer to => [ Manual Transmission Oil Filler Plug ] Service and Repair.

- Drive the vehicle onto a 4-column lift or over a service pit so that it is level.

- Remove noise insulation in center by loosening fasteners - 1 through 4 -.





- Place the (V.A.G 1782) under the transmission.

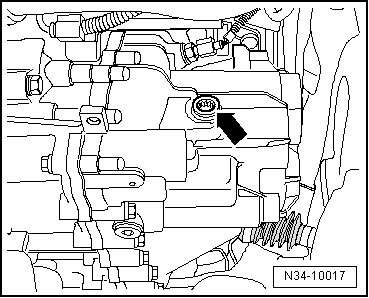

- Remove the bolt - arrow - for the oil filler hole in the manual transmission.





• Target value: the fluid level must reach the lower edge of the oil filler hole.

- Add gear oil if necessary.

- Tighten the bolt for the oil filler hole with a new sealing ring.

- Install the noise insulation.
