End Pipes, Aligning

End Pipes, Aligning

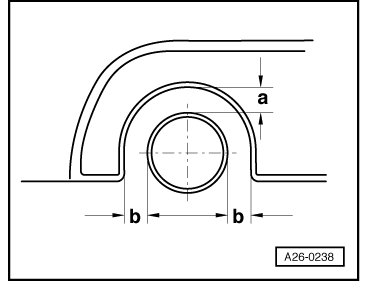

- Align rear muffler so there is an even distance between bumper openings and tailpipes.

• Dimension - a - = approximately 18.5 mm.





• Dimension - b - = - b -.

- To align tailpipes, loosen rear muffler mounts.

• Tightening specifications, refer to => [ Muffler Assembly Overview ] Muffler Assembly Overview.
