Brake Pad: Specifications






Front Wheel Brake

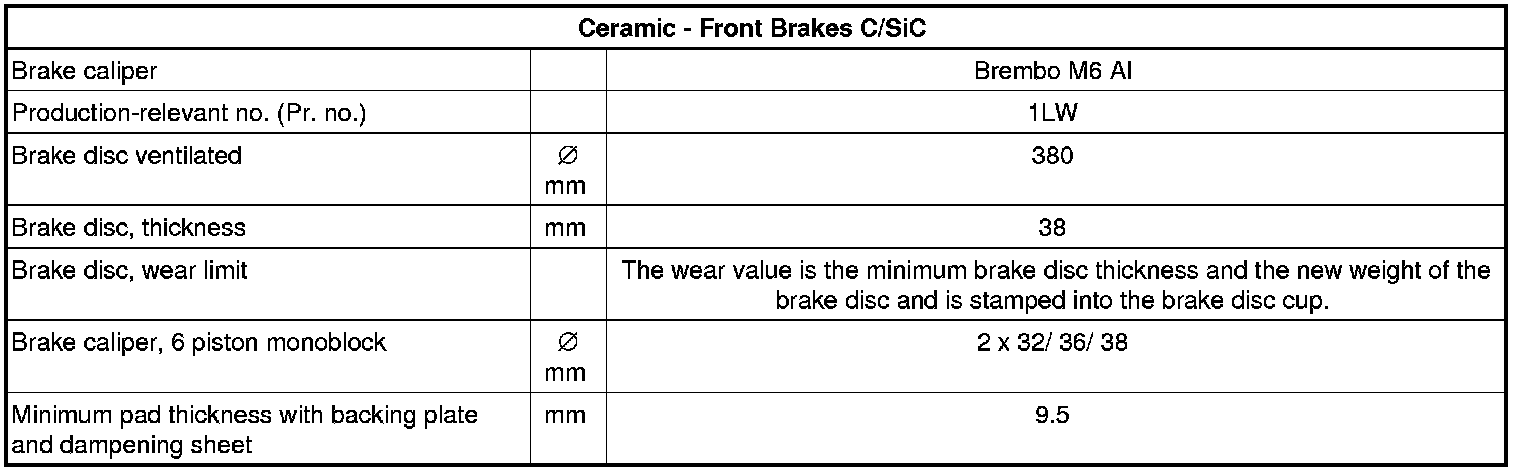

Ceramic - Front Brakes C/SiC

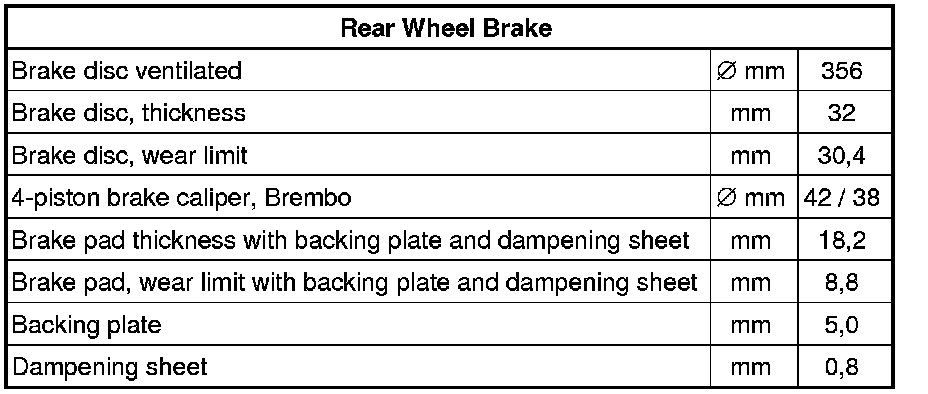

Rear Wheel Brake

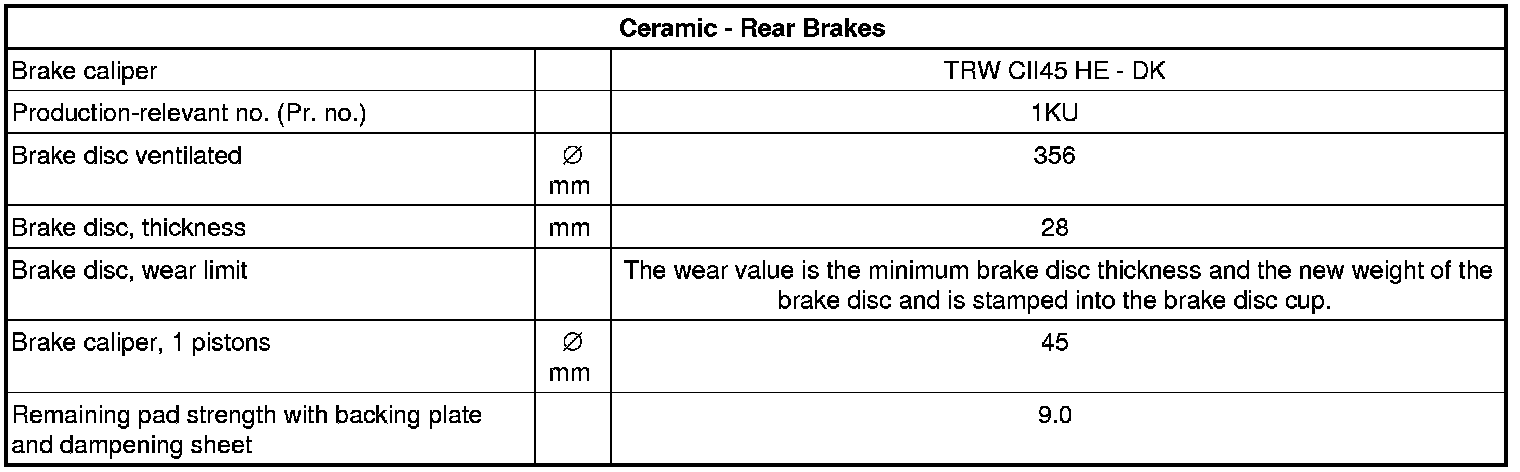

Ceramic - Rear Brakes
