Fluid Pan, A/T

Automatic Transmission Fluid Oil Pan

Fastener Tightening Specifications

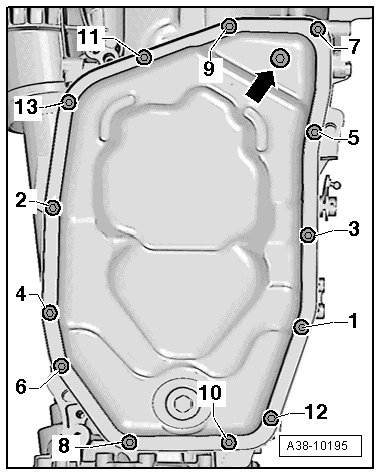

- Tighten the new ATF oil pan bolts in the following sequence: - 1 to 9 -.

- Remove the (T40199).

- Install the remaining bolts in sequence - 10, 11, 12, and 13 -.
