Top Tether Child Seat Anchor Cover

Top Tether Child Seat Anchor Cover

Special tools, testers and auxiliary items required

• Pry Lever (80 - 200)

Removing

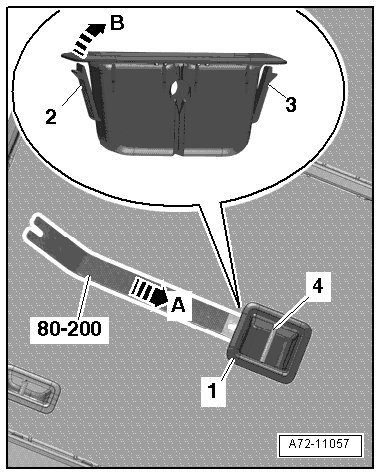

- Open the tabs - 2 and 3 - using the (80 - 200) - arrow A - and pry the top tether child seat anchor cover - 1 - off the rear seat backrest - arrow B -.

- Carefully remove the top tether child seat anchor cover from the bracket - 4 -.

Installation

- Mount the top tether child seat anchor cover on the bracket and press on it until it audibly latches.
