Anchor Reinforcement, Front Seat

Anchor Reinforcement, Front Seat

Removing






- Bring headrest into lowest lock position.

- Move the passenger seat into a higher position.

- Remove tunnel side trim panel. Refer to => [ Trim, Sill Side ] Trim, Sill Side.

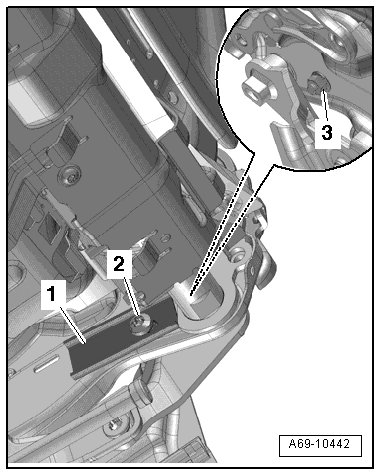

- Remove the bolt - 2 - and counterhold the nut - 3 -.

- Remove the LATCH reinforcement - 1 -.

• The seat is shown without the cover.

Installation

Installation is reverse of removal, but note the following:

Tightening specifications, refer to => [ LATCH Front Seat Child Seat Anchor Overview ] LATCH Front Seat Child Seat Anchor Overview.
