LATCH Rear Seat Child Seat Anchor, Top Tether

LATCH Rear Seat Child Seat Anchor, Top Tether

• The LATCH child seat anchorages are welded to the seat frame.

• The top tether child seat anchor is welded to the rear seat backrest frame.

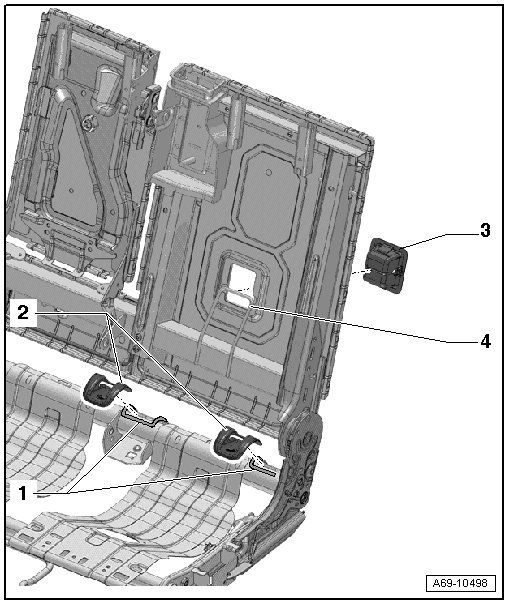

1 LATCH Child Seat Anchorage

• Welded to the seat frame.

2 Cover

• For the LATCH child seat anchorage.

• Removing and installing, refer to => [ Anchorage Cover ] Anchorage Cover.

3 Cover

• For the top tether child seat anchor.

• Removing and installing, refer to => [ Top Tether Child Seat Anchor Cover ] Top Tether Child Seat Anchor Cover.

4 Top Tether Child Seat Anchor

• Welded to the rear seat backrest frame.
