Air Bag: Locations

Airbag Connector

Removing







Follow all safety precautions when working on pyrotechnic components.

- Remove driver airbag. Refer to => [ Driver Airbag Igniter (N95) and Driver Airbag Igniter 2 (N250) ] Driver Airbag Igniter (N95) and Driver Airbag Igniter 2 (N250).


Before handling pyrotechnic components (for example, disconnecting the connector), the person handling them must discharge static electricity. For example, by briefly touching the door striker pin.

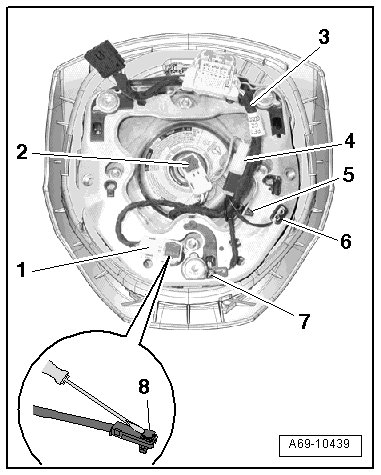

- Disconnect the connectors - 4, 6 and 7 -.

- Using a small screwdriver, release the connector retainers - 8 - and remove the connectors - 1 and 2 - for the driver airbag igniter (N95) and for driver airbag igniter 2 (N250).

- Disengage and remove the wire - 3 - on the bracket - 5 -.

Installation


• Follow all safety precautions when working on pyrotechnic components.

• Before handling pyrotechnic components (for example, connecting electrical connector), the person handling them must discharge static electricity. For example, by briefly touching the door striker pin.

Installation is reverse of removal, but note the following:

• Make sure the connectors are installed all the way in and are secure.
