Power Steering Line/Hose: Locations

Hoses to Reservoir, Hydraulic Oil Cooler and Return Line Installation Locations

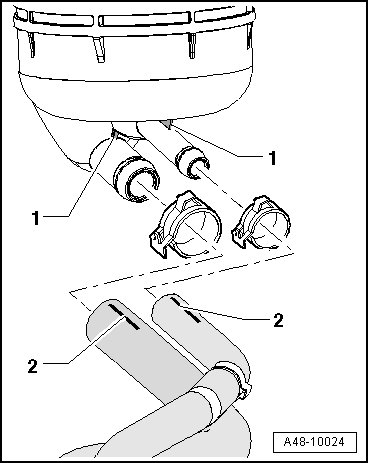

Installation position of the lines on the reservoir applies to all engines.






• The connections must free of oil and grease, clean if necessary.

• The markings - 2 - on the lines must align with the bars - 1 - on the reservoir.

• Positioning of the clamp lock in front driving direction.

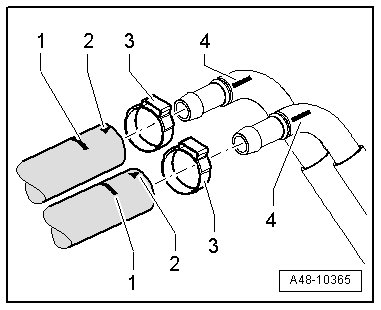

Hose Line to Hydraulic Oil Cooler Installation Position






• The connections must free of oil and grease, clean if necessary.

• The markings - 2 - on the hose line must point upward in the 12 o'clock position.


• When attaching the hose lines - 1 -, counterhold on the pipe lines - 4 -.

• Secure the clamps - 3 - on the markings - 1 -.

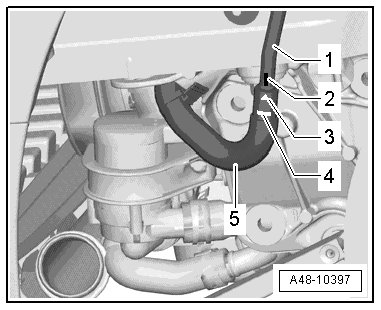

Installation Position on the Return Line Connection





• The connections must free of oil and grease, clean if necessary.

• The marking - 3 - on the line - 5 - must align with the marking - 2 - on the pipe - 1 -.

• Secure the clamp (not pictured) on the marking - 4 -.

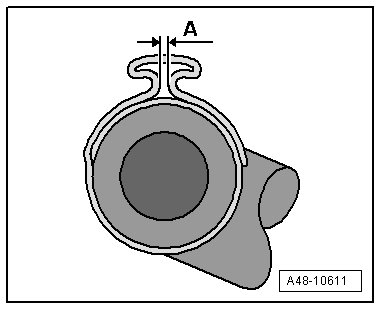

Clamp Installation Position






- Close the clamp completely using hose clamp pliers (V.A.G 1275).

Do not exceed dimension - A - by 1 mm; if necessary tighten the clamp with (V.A.G 1275).
