Vacuum Pump: Service and Repair

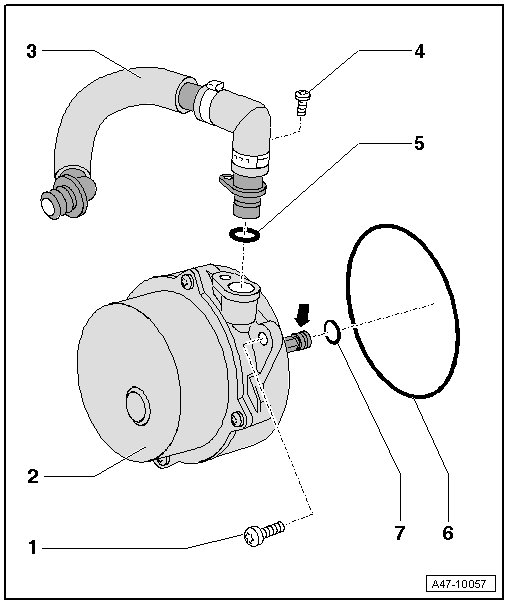

Vacuum Pump Assembly Overview






1 Torx 30 bolt (quantity: 2)

• 9 Nm

• Remove to remove pump.

• The pump is not designed to be disassembled.

2 Vacuum pump

3 Vacuum hose

• Secure with hose clamps that match those used in production.

4 Bolt

• 5 Nm

• Installing the bolt depends on the model.

Alternatively, secure the vacuum hose with the hose clamp for the vehicle version.

5 O-ring

• Replace

• Installation of the O-ring depends on the model.

6 O-ring

• Replace

• Installation of the O-ring depends on the model.

7 O-ring

• Replace

• Installation of the O-ring depends on the model.
